RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount)
RED DIGITAL CINEMA 720-0064 Overview
- 1Description
- 2
- 3Compatibility
- 4Expanded Interface
- 5Status Screen
This
RED PRO I/O Module from

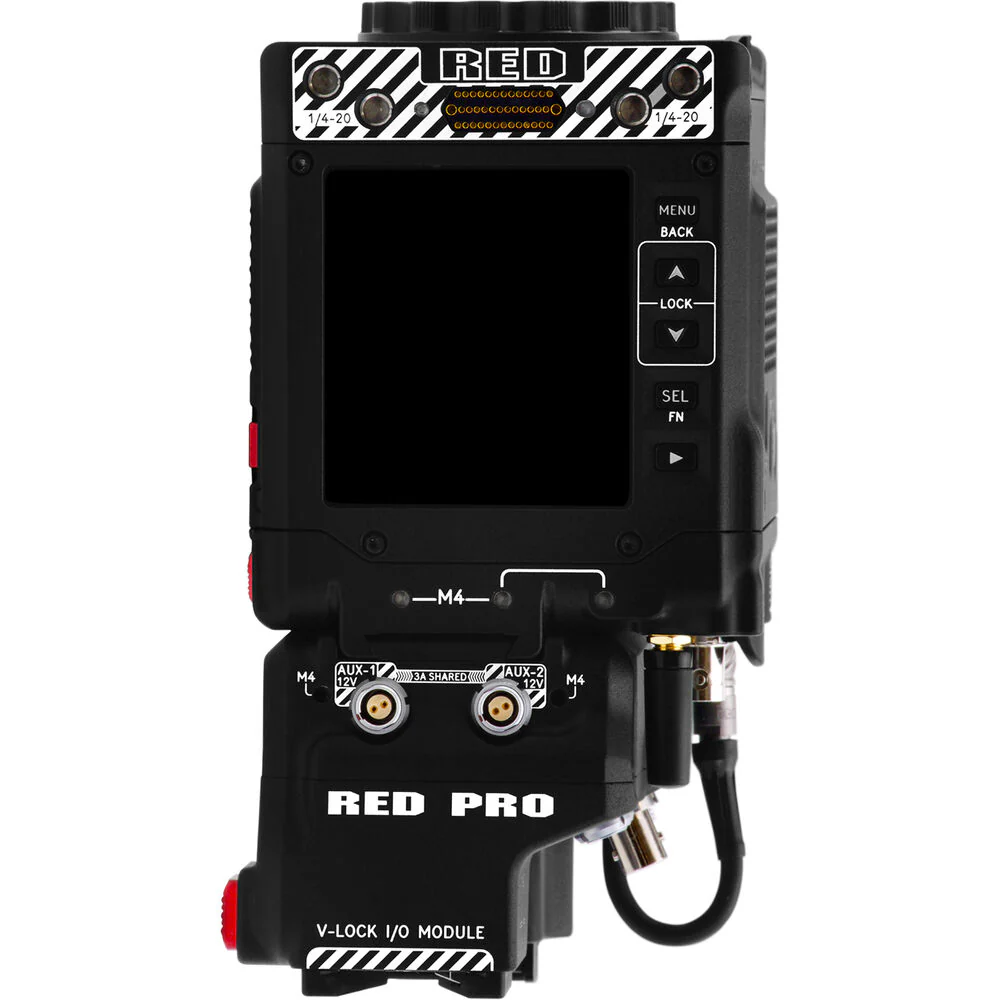

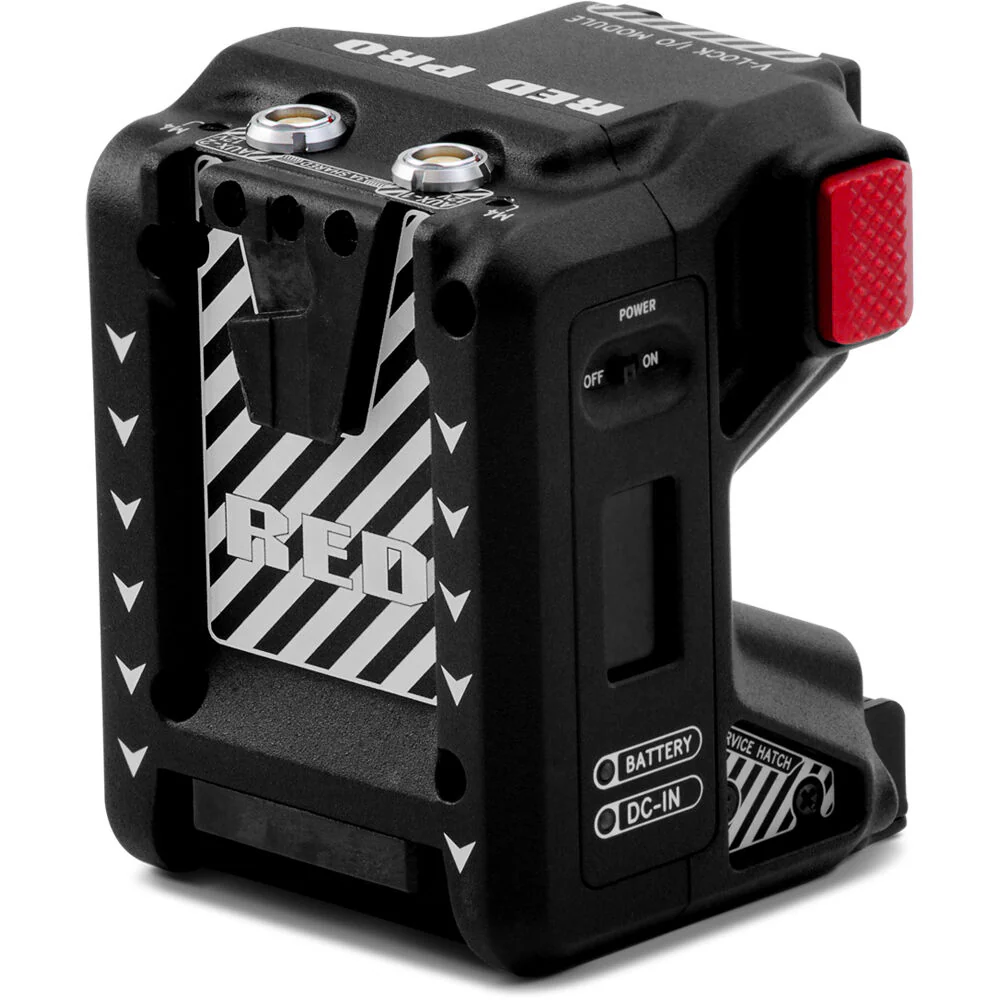

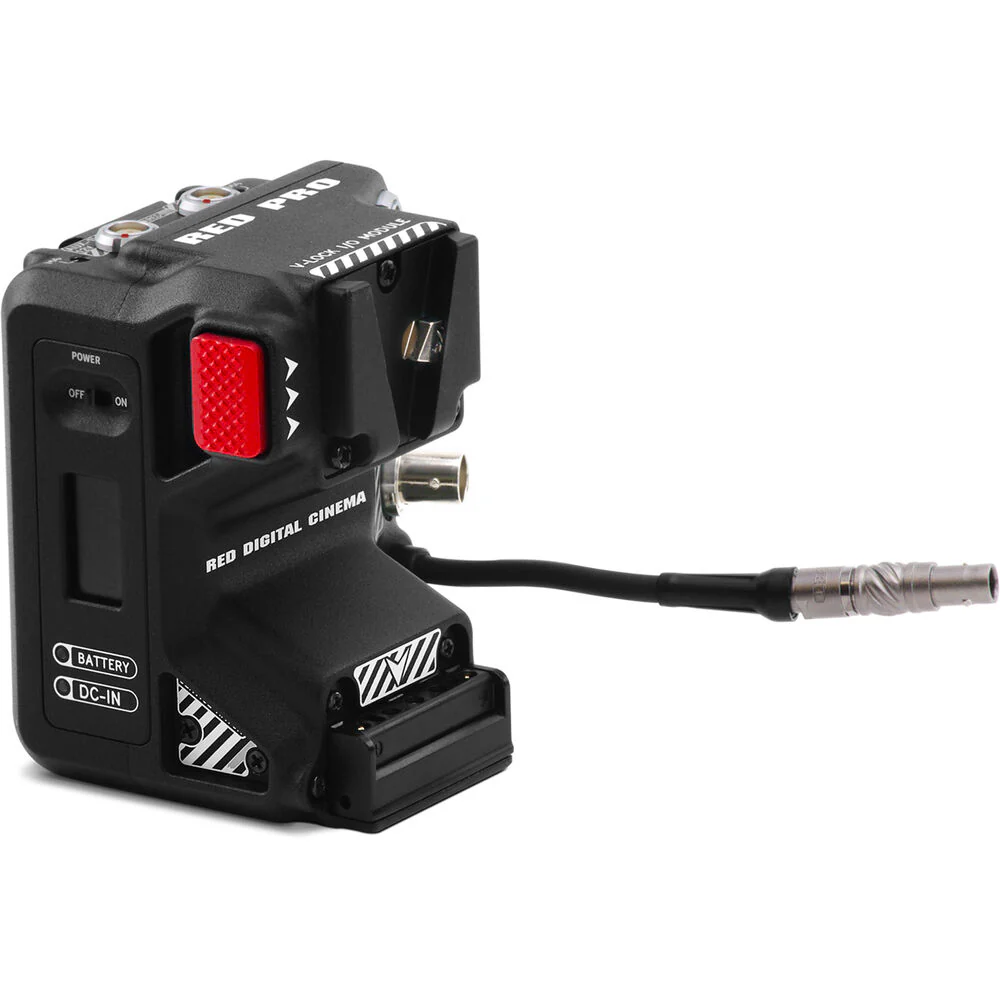

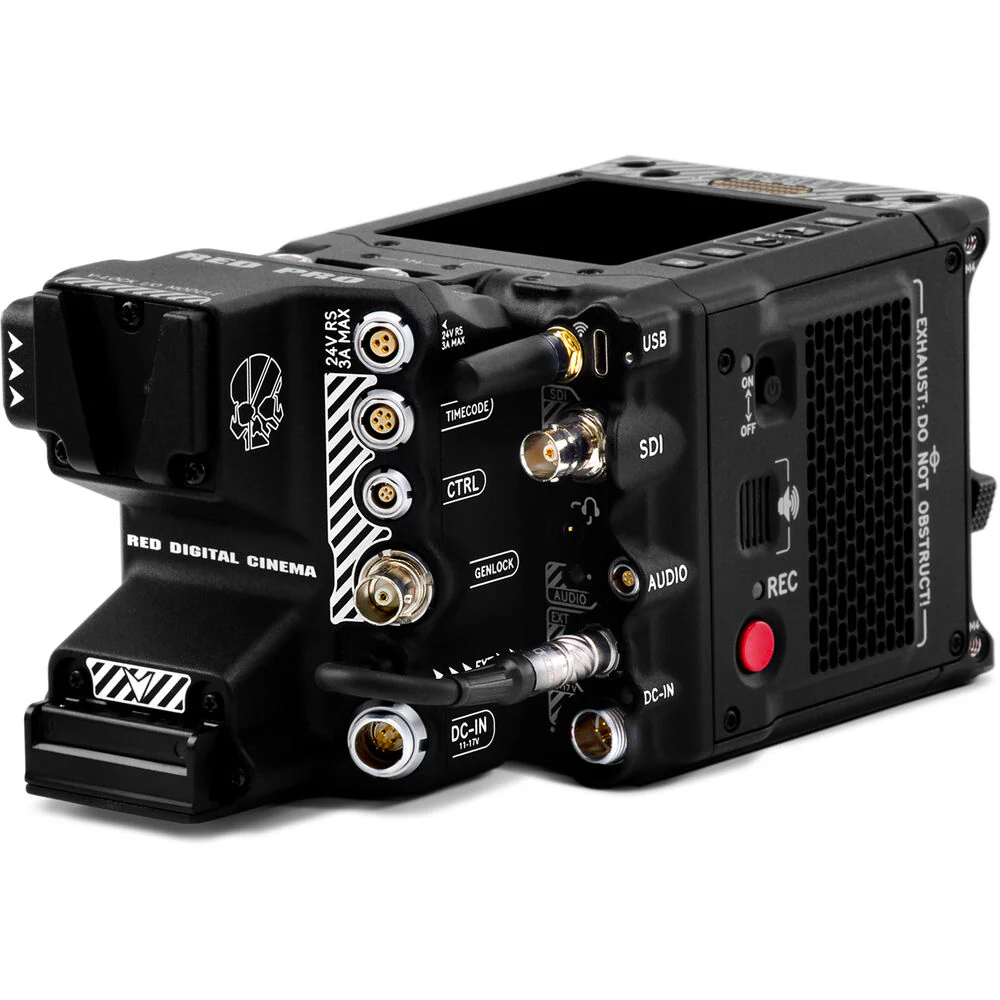

RED DIGITAL CINEMA provides a V-mount battery plate and additional power and communication interfaces for your KOMODO-X 6K digital cinema camera. The V-mount module mounts directly to the KOMODO-X camera's Micro-V mount plate and 9-pin EXT port.
Compatibility
- RED KOMODO-X cinema camera
Expanded Interface

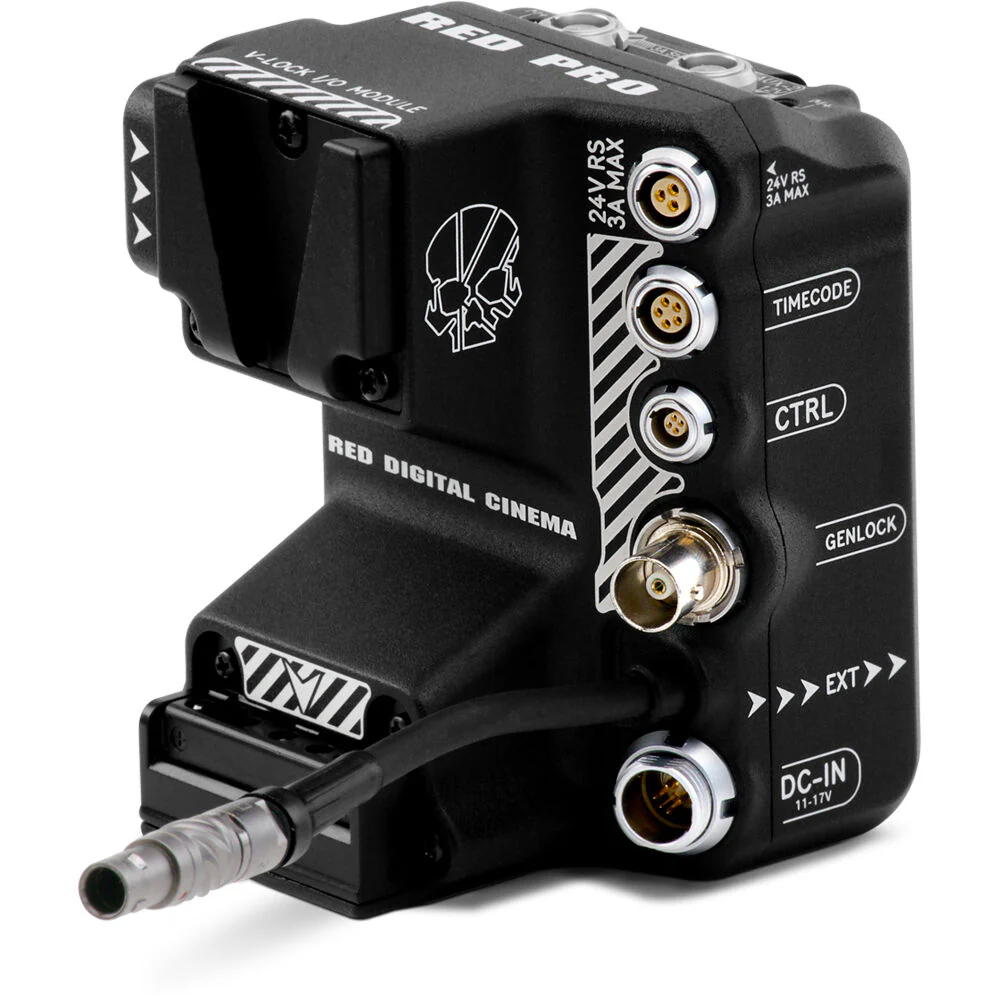

- Pro video connectors include timecode in, genlock, and 4-pin control interfaces.
- The module also provides one DC power input, one regulated 24V R/S port, and two unregulated 12V AUX ports.
Status Screen
- The operator-side screen displays key voltage and battery percentage information.
- A switch enables you to cut power to the module when you want to leave a battery on for an extended length of time.
In the Box
- RED DIGITAL CINEMA RED PRO I/O Module for KOMODO-X (V-Mount)
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Compatibility
- Expanded Interface
- Status Screen
RED DIGITAL CINEMA 720-0064 Specs
General
| Compatibility |
RED DIGITAL CINEMA KOMODO X
|
Inputs / Outputs
| Other Ports |
EXT: 1 x 9-Pin
Control: 1 x 4-Pin Timecode: 1 x 5-Pin |
Wireless
| Mobile App Compatible |
No
|
Battery
| Battery Chemistry |
Lithium-Ion
|
Power
| Power Output |
1 x 3-Pin Fischer R/S, 24 V, 3 A Max., Regulated
2 x 2-Pin Fischer R/S, 12 V, 3 A Combined Max., Unregulated |
Environmental
| Operating Temperature |
32 to 104Ā°F / 0 to 40Ā°C
|
| Storage Temperature |
-4 to 122Ā°F / -20 to 50Ā°C
|
Physical
| Mounting |
1 x Micro V-Mount
1 x V-Mount |
| Color |
Black
|
| Material of Construction |
Aluminum Alloy
|
| Dimensions |
3.9 x 3.4 x 2.8" / 98 x 85.8 x 71Ā mm
|
| Weight |
14.5Ā oz / 410Ā g
|
Packaging Info
| Package Weight |
1.575 lb
|
| Box Dimensions (LxWxH) |
6.9 x 4.9 x 3.7"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
