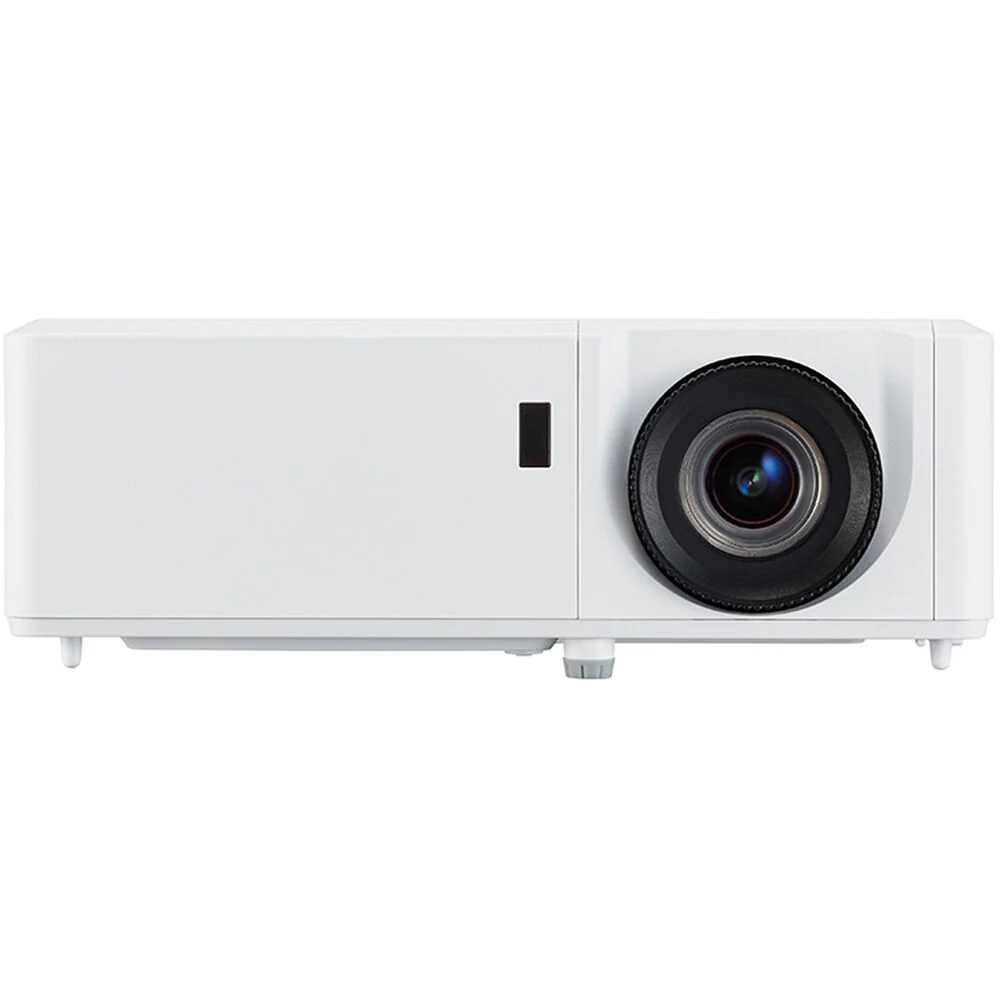

Ricoh PJ-WUL5860 4000-Lumen WUXGA Laser DLP Projector

Ricoh PJ-WUL5860 4000-Lumen WUXGA Laser DLP Projector

Ricoh WUL5860 Overview

By Photo's
Frank Abbate

Enjoy ease-of-use and portability with the Ricoh PJ-WUL5860 4000-Lumen WUXGA Laser DLP Projector. Featuring a long-lasting laser light source, compact portable design, and various image correction functions, the PJ-WUL5860 is well suited for smaller classrooms, offices, and portable presentations.

A variety of SD, HD, and UHD sources are supported via HDMI 2.0, VGA, and RCA composite A/V inputs. The integrated standard-throw lens is capable of filling a 16:10 aspect screen, 100" in diagonal, from 10' away. Additionally, an IP6X dustproof design, 360° orientation support, four-corner correction, and keystone capabilities enable installation in less-than-ideal environments.

Multi-Module Laser Light Source
Laser light sources typically enable maintenance-free operation for up to 20,000 hours in standard mode. By utilizing a multi-module design, the laser beam originates from several laser diodes. This configuration ensures that even if one diode experiences a malfunction, the overall brightness remains relatively unaffected. This design significantly reduces the likelihood of abrupt loss of projection light sources during crucial presentations, resulting in enhanced stability and reliability.
Wide Color Gamut
The laser light source exhibits a pure texture, covering more than 92% of the Rec.709 color gamut range. Ricoh's unique NCE natural gain technology allows for lifelike color reproduction to fit the needs of the environment.
Advanced Image Adjustments
The PJ WUL5860 supports 360-degree installation, making it suitable for a wide range of applications like ceiling, floor, or wall projection. Due to installation conditions, image distortion and deformation may occur once the projector is set up. The built-in four corners correction function enables individual adjustments for each corner of the projection screen. When paired with horizontal and vertical keystone adjustments, a perfectly rectangular view can be achieved.
IP6X Dust-Proof Design
Dust plays a crucial role in impacting a projector's lifespan. The PJ WUL5860 optical engine is fully enclosed, with a dustproof rating of IP6X. This significantly reduces maintenance costs and prolongs the life of the projector by mitigating common issues caused by contaminants, such as image speckling and brightness decline.

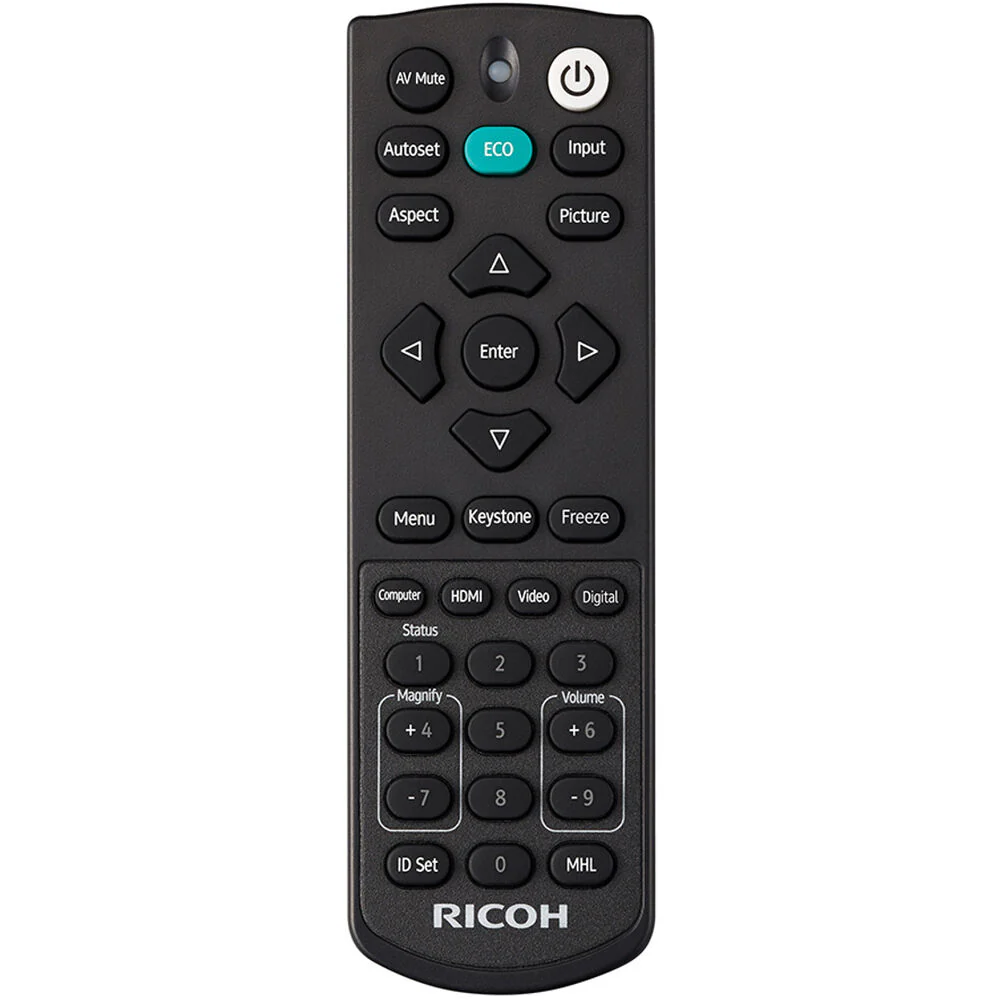

Remote Control ID Setup
By using the remote control numbering function, up to 99 projectors can be set with different remote control numbers. The remote can control the corresponding projectors by switching different IDs, avoiding simultaneous control of multiple adjacent projectors when using the IR remote.
Additional Features
  • 10% vertical lens shift
  • Automatic vertical angle correction
  • Quick power on/off
  • DICOM Sim mode
  • Built-in dual 8W speakers
UPC: 026649324802

Items Included

  • Ricoh PJ-WUL5860 4000-Lumen WUXGA Laser DLP Projector
  • Remote Control with Batteries
  • Power Cord
  • HDMI Cable (6')
  • Limited 3-Year Manufacturer Warranty

Additional Resources

    Ricoh WUL5860 Specs

    Key Specs
    Display System
    1-Chip 0.48" DLP
    Native Resolution
    1920 x 1200
    Maximum Brightness
    4000 Lumens
    Throw Ratio
    1.21 to 1.59:1 (100" Screen Size @ 10' / 3.0 m)
    Projection Size
    30 to 300" / .8 to 7.6 m
    HDR Support
    No

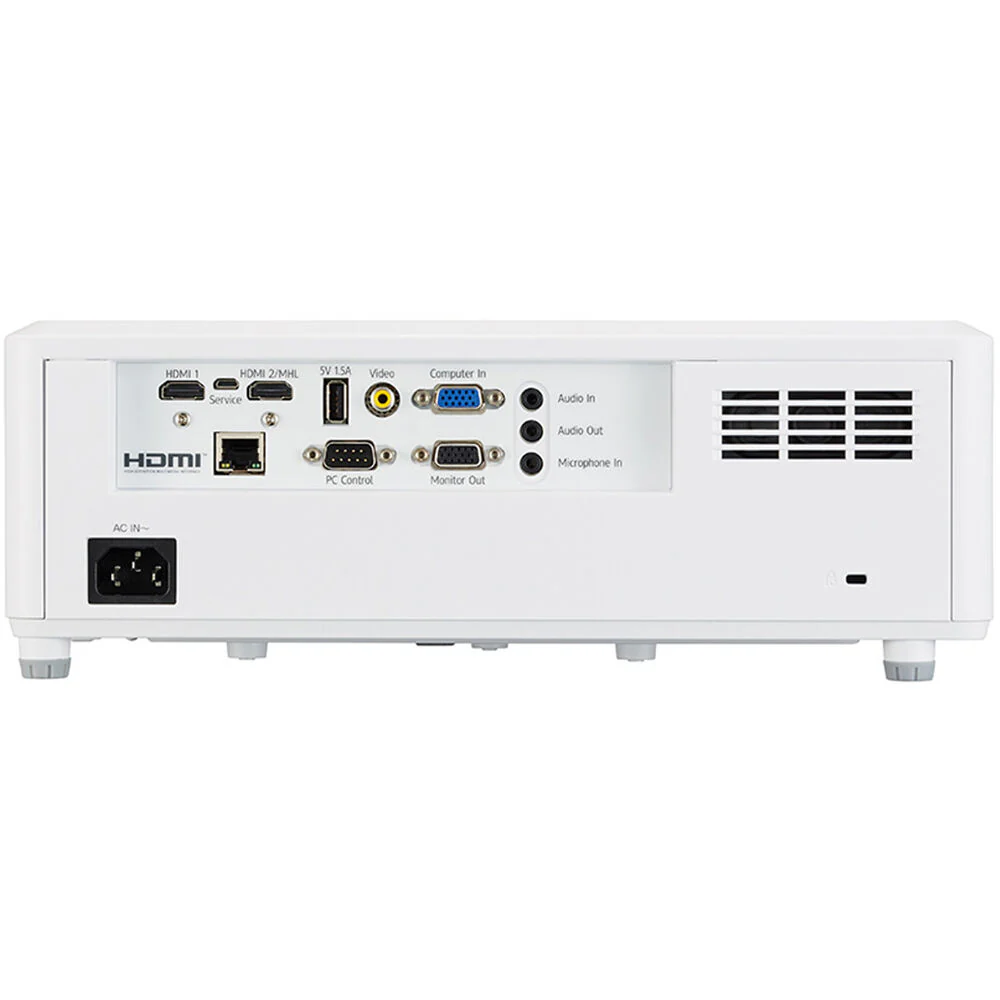

    Inputs/Outputs
    2x HDMI 2.0 Audio, Video Input
    1x RCA (Composite) Video Input
    1x DE-15/DB-15 (VGA) Video Input
    1x 1/8" / 3.5 mm Mini Audio Input
    1x 1/8" / 3.5 mm Mini Microphone Input
    1x DE-15/DB-15 (VGA) Video Output
    1x USB-A Power Output
    1x DE-9/DB-9 (RS-232) Control Input
    1x Micro-USB Service Input
    1x RJ45 (Ethernet) LAN Input
    Light Source
    Laser Phosphor
    Image Display
    Display System
    1-Chip 0.48" DLP
    Native Resolution
    1920 x 1200
    Supported Resolutions
    Maximum: 3840 x 2160 @ 60 Hz
    Maximum Brightness
    4000 Lumens
    Aspect Ratio
    Native: 16:10
    Supported: 16:9
    Supported: 4:3
    Dynamic Contrast Ratio
    5,000,000:1
    DLP Link 3D
    Yes
    Supported 3D Formats
    Frame Sequential
    Side by Side
    Top Bottom
    Color Depth
    10-Bit (1.07 Billion Colors)
    Scan
    Horizontal: 27 to 101.6kHz
    Vertical: 24 to 120Hz
    Lens
    Includes Lens
    Yes
    Focus
    Manual
    Aperture
    f/1.94 to 2.23
    Focal Length
    12.82 to 16.74mm
    Lens Shift
    Vertical: + 10%
    Optical Zoom
    Manual: 1.3x
    Throw Distance
    2.6 to 33.7' / 0.8 to 10.3 m
    Throw Ratio
    1.21 to 1.59:1 (100" Screen Size @ 10' / 3.0 m)
    Projection Size
    30 to 300" / .8 to 7.6 m
    Features
    Keystone Correction
    Auto / Manual to Vertical: ± 30°
    Manual to Horizontal: ± 30°
    HDR Support
    No
    Multi-Input Support (PIP/PBP)
    No
    Ceiling Mountable
    Yes
    Rear Screen Projection
    Yes
    Built-In Speaker
    Yes (Stereo)
    Speaker Power
    8 W
    Projection Tilt Option
    Yes
    Input/Output Connectors
    Inputs/Outputs
    2x HDMI 2.0 Audio, Video Input
    1x RCA (Composite) Video Input
    1x DE-15/DB-15 (VGA) Video Input
    1x 1/8" / 3.5 mm Mini Audio Input
    1x 1/8" / 3.5 mm Mini Microphone Input
    1x DE-15/DB-15 (VGA) Video Output
    1x USB-A Power Output
    1x DE-9/DB-9 (RS-232) Control Input
    1x Micro-USB Service Input
    1x RJ45 (Ethernet) LAN Input
    HDCP Support
    Yes
    Media/Memory Card Slot
    No
    Hardware
    Mobile App Compatible
    No
    Wireless LAN / Wi-Fi
    No
    Bluetooth
    No
    General
    Light Source
    Laser Phosphor
    Expected Lamp Life
    Full Brightness: 20,000 Hours
    Fan Noise
    Full Brightness: 34 dB
    Low Brightness: 31 dB
    Security
    Cable Lock Slot
    Keypad Lock
    Input Power
    100 to 240 VAC, 50 / 60 Hz
    Power Consumption
    Full Brightness: < 360 W
    Standby Mode (Lamp Off): < 2 W
    Certifications
    IEC, FCC, CE, UKCA
    Operating Conditions
    32 to 104°F / 0 to 40°C at 0 to 80% Humidity
    Storage Conditions
    14 to 140°F / -10 to 60°C at 0 to 85% Humidity
    Dimensions (W x H x D)
    13.3 x 4.8 x 10.4" / 337.0 x 122.5 x 265.0 mm (With Feet)
    13.3 x 4.3 x 10.4" / 337.0 x 108.0 x 265.0 mm (Not Including Feet)
    Weight
    10.14 lb / 4.6 kg
