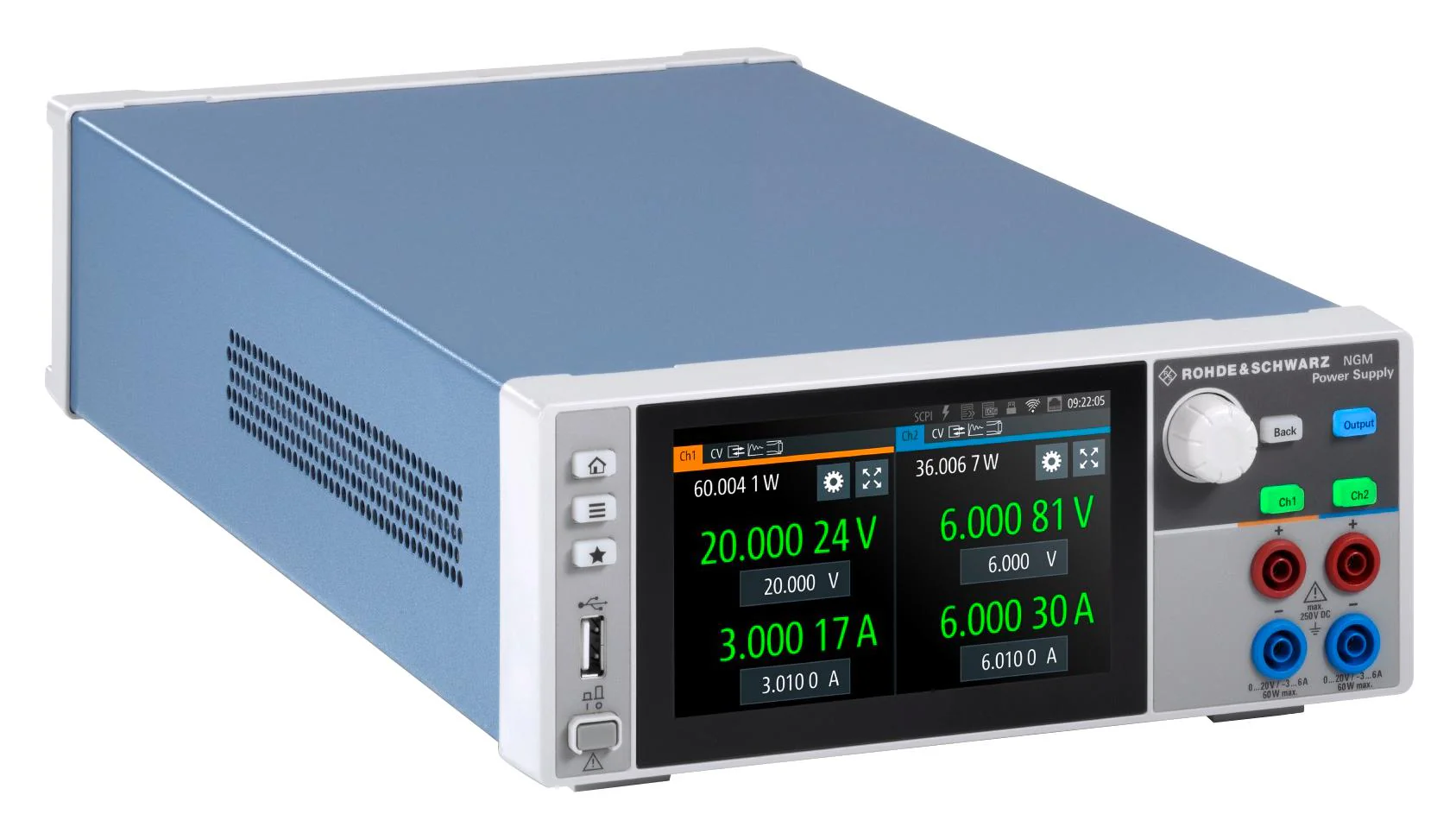

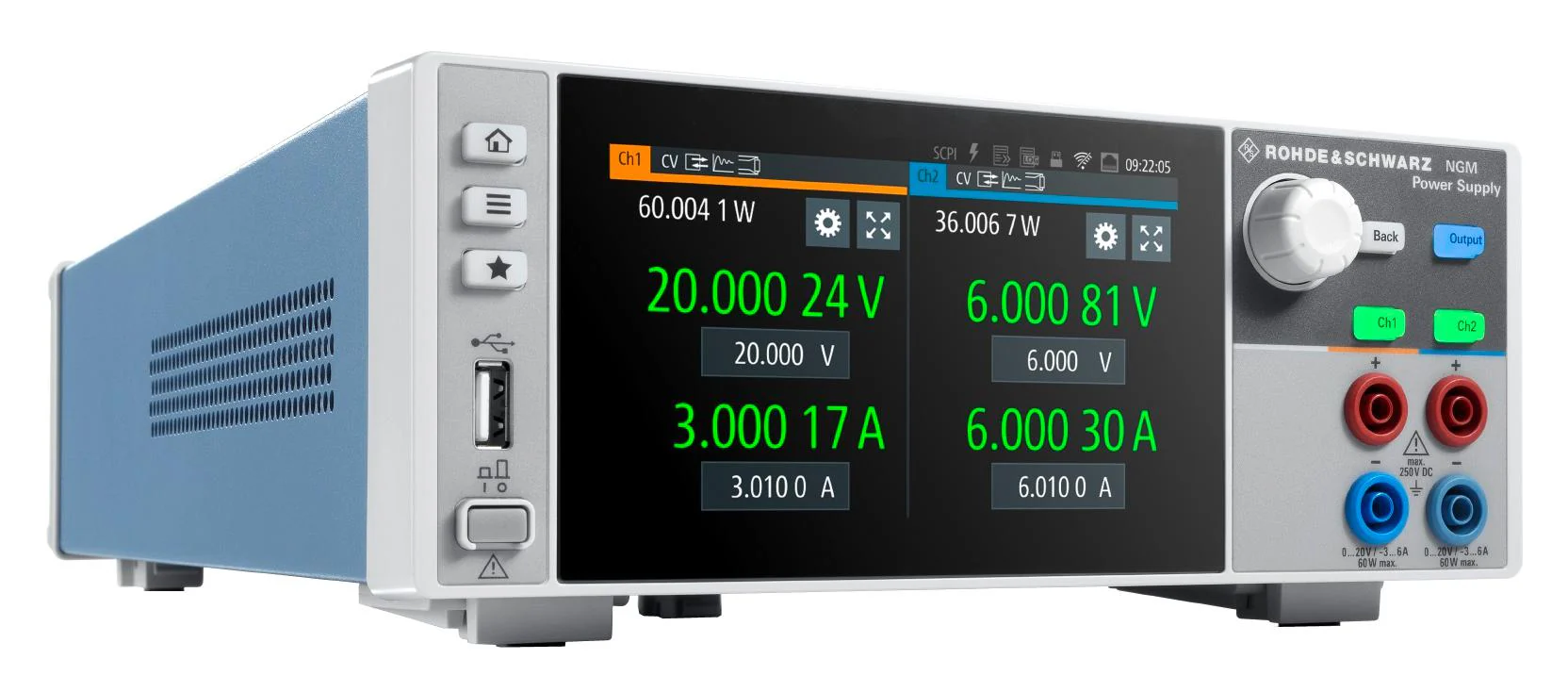

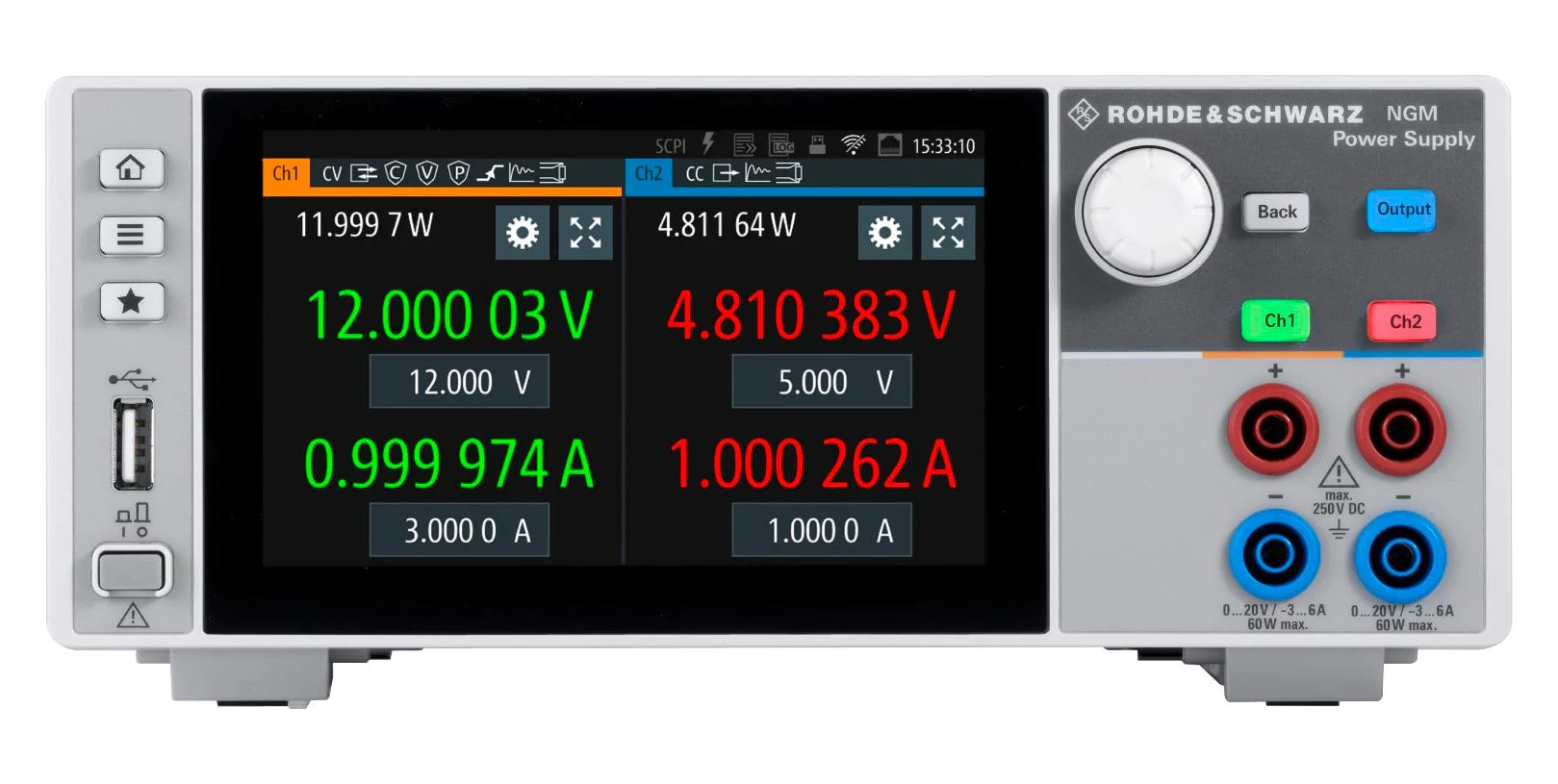

Rohde & Schwarz NGM-COM2B Bench Power Supply Adjustable 4 Output 0 V 64 10 A
NGM-COM2B is a bundle of NGM202 power supply with software options (digital trigger I/O, digital voltmeter functionality, battery simulation). NGM202 is a NGM200 series 2-channel power supply. Thanks to their high accuracy and fast load recovery time, the R&S®NGM200 power supplies are perfect for challenging applications. Their two-quadrant architecture allows them to function both as a source and a sink to simulate batteries and loads. High-speed data acquisition and convenient battery simulation widen the range of applications. The output channels are floating, galvanically isolated and protected against overload and short circuits. It is perfect for power supplies are perfect for characterizing devices that have low power consumption in standby mode and high current in full load operation. In many cases, an additional digital multimeter is no longer necessary.
- 120W total output power, 0V to 20V output voltage per channel, -3A to 6A maximum current per channel
- 60W/3A maximum power and current per channel when used as a load
- Ideal for powering IoT devices and other battery-operated devices
- Fast load regulation, minimum residual ripple and low noise
- Readings with up to 6½ digit resolution
- Constant voltage, constant current and constant resistance modes
- High-speed acquisition (FastLog functionality)
- Easy operation, high-resolution touchscreen, colour coding of operating modes
- Protection functions to safeguard instrument and DUT
- NGM-COM2b is a complete package (not including Wi-Fi option) for general purpose applications
NGM202 power supply, NGM-K103 digital trigger I/O, NGM-K104 digital voltmeter functionality, NGM-K106 battery simulation, Set of power cables, Quick start guide.
Other details
| Brand | ROHDE & SCHWARZ |
| Part Number | NGM-COM2B |
| Quantity | 1 Kit |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Technical Notes & Articles EN | |
| Operating Instructions EN | |
| Declaration of Conformity EN | |
| Enhanced Product Overview EN | |
| Assembly Instructions EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
