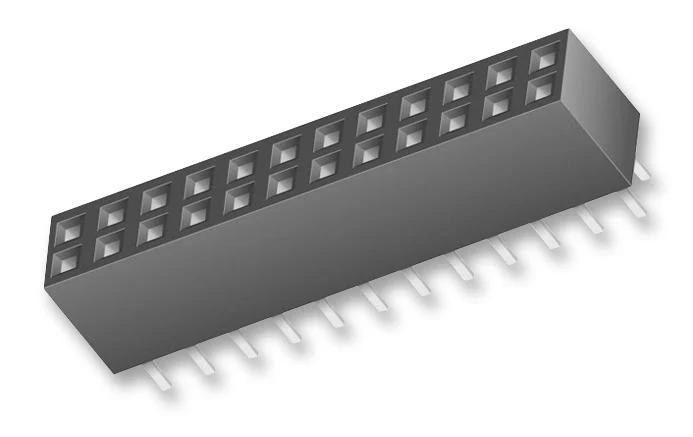

Samtec BCS-110-L-D-TE BCS-110-L-D-TE PCB Receptacle Board-to-Board 2.54 mm 2 Rows 20 Contacts Through Hole Mount Tiger Claw BCS
The BCS-110-L-D-TE is a 20-pole 2-row 2.54mm Tiger Claw� Pass-through Socket Strip with 10?inch (0.25?m) gold-plated phosphor bronze contacts and matte tin plated tail. Liquid crystal polymer insulator and top entry body orientation. The BCS series pass-through socket strip is compatible with DW, EW, HMTSW, HTSW, HW-SM, HW-TH, LCW, MTLW, MTSW, PHT, TSM, TSS, TSW, ZSS and ZW series connectors.
- Orderable with single and dual row (-S/-D) options
- Pitch spacing is 2.54mm (1 to 50 contacts per row)
- Featured with top entry (-TE) option
- Black liquid crystal polymer insulator material
- Contact material is phosphor bronze
- 10?" gold plated contacts
- Tiger Claw contact system
- Contact resistance is 10mohm
- Complies with UL E111594 and CSA 090871
- 0
- 000 standards
- High operating temperature range of -55?C to 125?C
Industrial
Other details
| Brand | SAMTEC |
| Part Number | BCS-110-L-D-TE |
| Quantity | Each |
| Technical Data Sheet EN |  |
