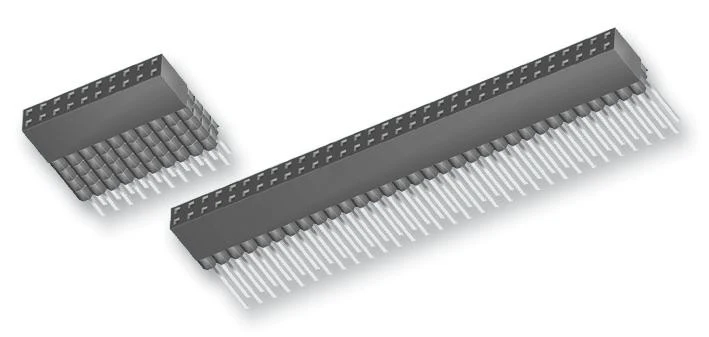

SAMTEC ESQ-126-14-G-D Board-To-Board Connector, 2.54 mm, 52 Contacts, Receptacle, ESQ Series, Through Hole, 2 Rows
The ESQ series from Samtec are PC/104 through hole elevated socket strips. It mates with Samtec TSW, MTSW, EW, MTLW, TSS, ZSS, TSM, DW, ZW, HW, TSSH and HTSS series of connectors. These are self nesting socket strips which has standard and low insertion force contacts with 0.025" (0.635mm) square tail.
- Orderable with single/dual/triple rows (-S/-D/-T option)
- Pitch spacing is 2.54mm (1 to 36 contacts per row) with vertical orientation
- High operating temperature range of -55�C to 125�C for 20�" gold plated contacts
- Contact material is phosphor bronze
- Black glass filled polyester insulator material
- Tiger Buy contact system
- Complies with UL E111594 and CSA 090871_0_000 standards
Applications
Industrial
Product details
| No. of Contacts | 52Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Receptacle |
| Product Range | ESQ Series |
| Contact Material | Phosphor Bronze |
| Contact Termination Type | Through Hole |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
Other details
| Brand | SAMTEC |
| Part Number | ESQ-126-14-G-D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$5.09
Original: $16.97
-70%SAMTEC ESQ-126-14-G-D Board-To-Board Connector, 2.54 mm, 52 Contacts, Receptacle, ESQ Series, Through Hole, 2 Rows—
$16.97
$5.09Product Information
