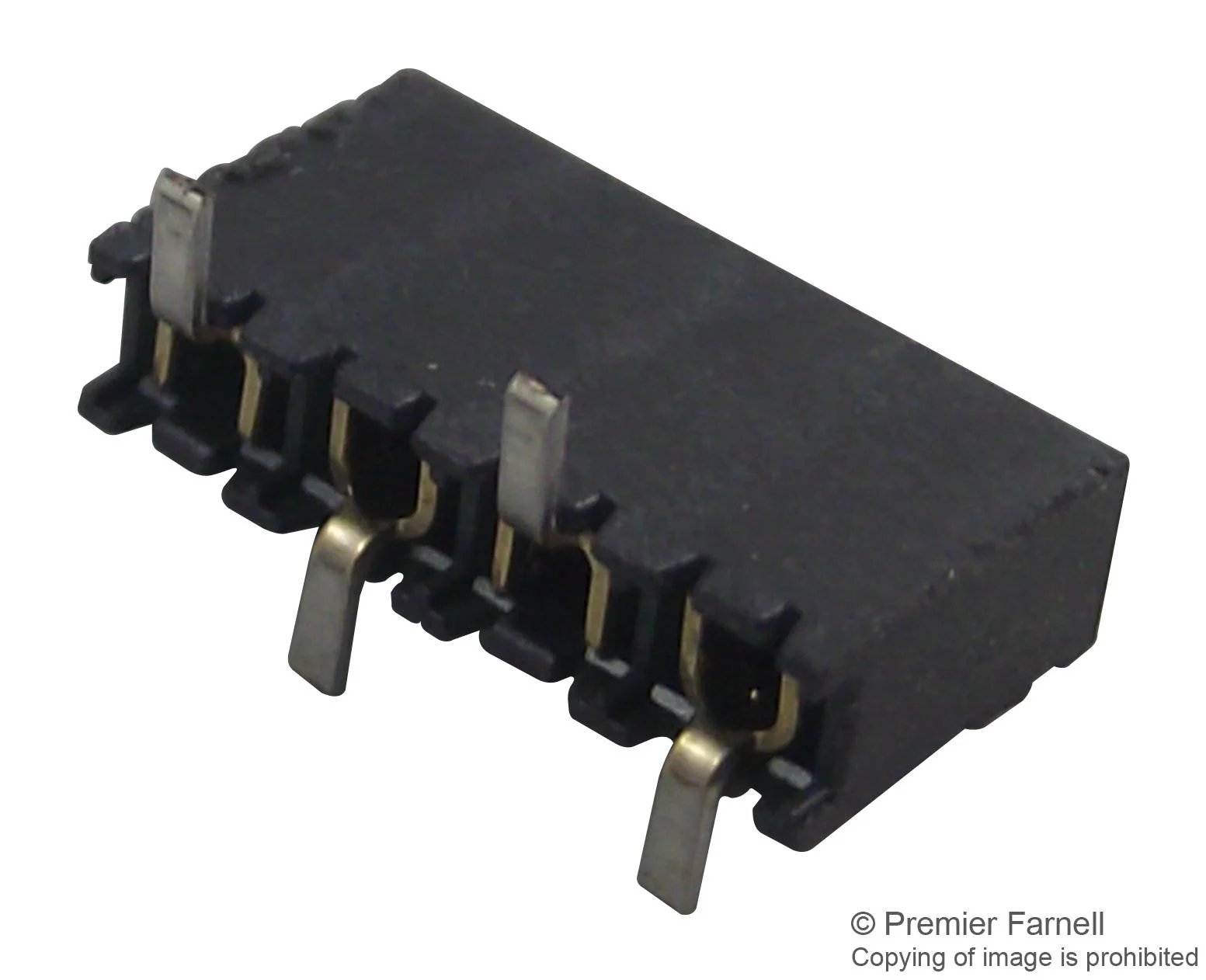

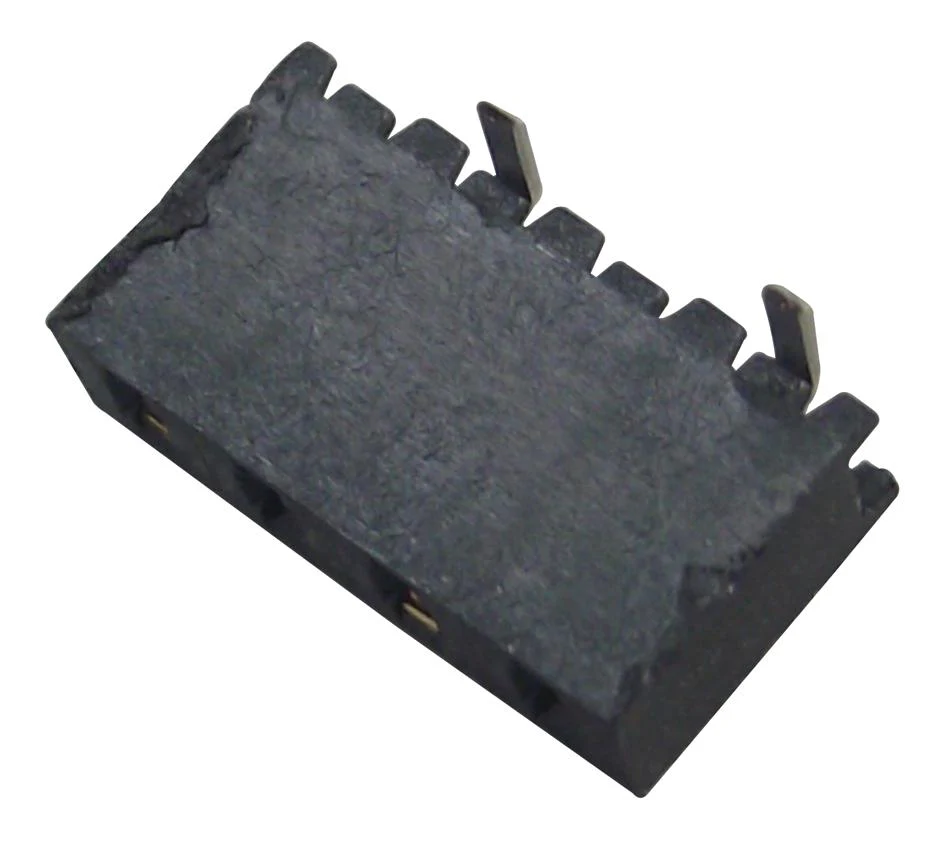

Samtec MMS-104-02-L-SV MMS-104-02-L-SV PCB Receptacle Board-to-Board Wire-to-Board 2 mm 1 Rows 4 Contacts Surface Mount
The MMS series from Samtec are Tiger Claw socket strips. These are surface mount socket strips mates with Samtec TMMH, TMM, MTMM, MMT, TW, LTMM, ZLTMM, TCMD and TSH series connectors.
- Pitch spacing is 2mm (2 to 40 contacts per row)
- Single row vertical mounting socket strip
- High operating temperature range of -55?C to 125?C for 10?" gold plated contacts
- Black liquid crystal polymer insulator material
- Contact material is phosphor bronze
- Contact resistance is 10mohm
- Tiger Claw contact system
- Complies with UL E111594 and CSA 090871
- 0
- 000 standards
Industrial
Other details
| Brand | SAMTEC |
| Part Number | MMS-104-02-L-SV |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.80
Original: $2.66
-70%Samtec MMS-104-02-L-SV MMS-104-02-L-SV PCB Receptacle Board-to-Board Wire-to-Board 2 mm 1 Rows 4 Contacts Surface Mountā
$2.66
$0.80Product Information
