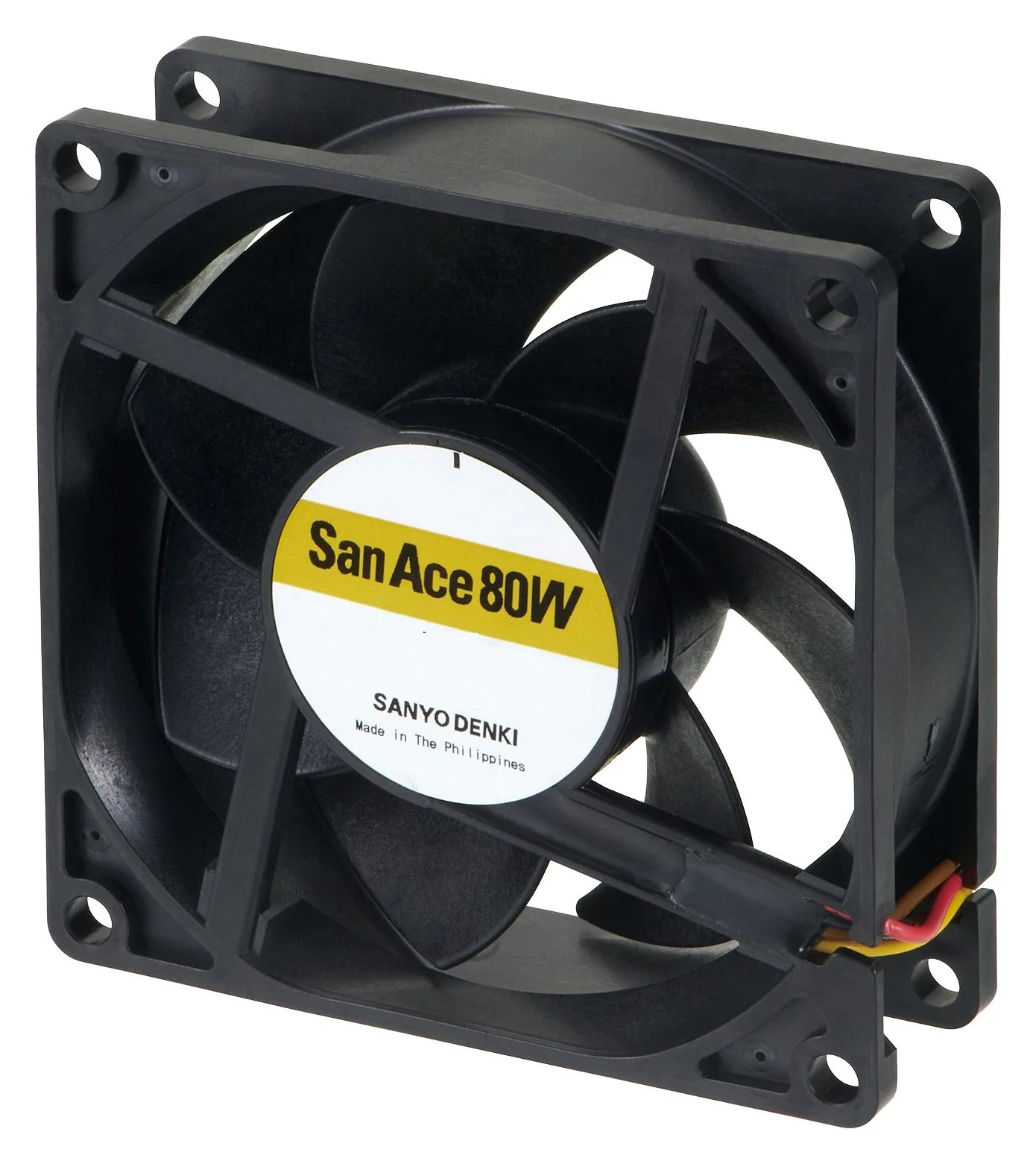

Sanyo Denki 9WPA0812P4G001 DC Axial Fan 12 V Square 80 mm 25 Ball Bearing 81.9 CFM
San Ace 80W 9WPA type splash proof fan. This fan delivers a maximum airflow of 2.32m3/min and a maximum static pressure of 210Pa. The PWM control function enables the control of fan speed, contributing to lowering noise and improving energy efficiency of devices.
- High airflow and high static pressure
- IP68-rated, water and dust protection
- Maintains stable operation even in harsh environments
- 12V rated voltage, 10.8V to 13.2V operating voltage range
- Operating temperature range from -20 to +70Ā°C
- Expected life of 40000h/60Ā°C (70000/40Ā°C)
- Plastic (flammability: UL 94V-0) frame, plastic (flammability: UL 94V-0) impeller
- 100% PWM duty cycle, 0.71A rated current, 8.52W rated input
- 8250min-1 rated speed, 54 SPL[dB(A)], size is 80 x 80 x 25mm
- UL, CSA and EN standards
Other details
| Brand | SANYO DENKI |
| Part Number | 9WPA0812P4G001 |
| Quantity | Each |
| Technical Data Sheet EN |  |
