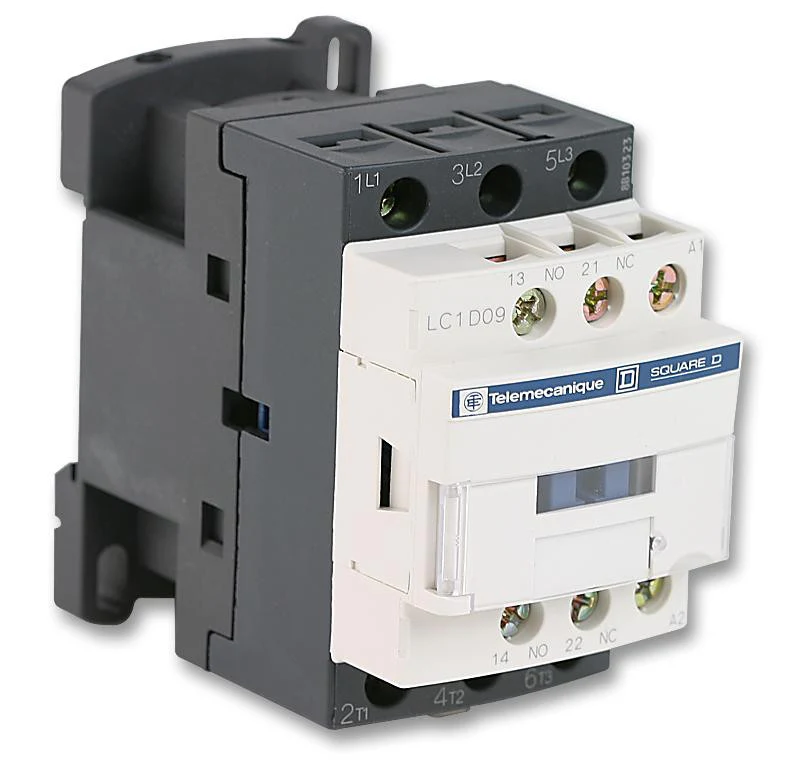

SCHNEIDER ELECTRIC / TELEMECANIQUE LC1D09V7 Contactor, TeSys D Series, 400 VAC, 3 Pole, DPDT, DIN Rail, 20 A, 400 V
The LC1D09V7 is a 3-pole TeSys D Contactor with AC coil. 3NO power pole contact composition. 1NO-1NC auxiliary contact composition. With safety cover. Without built-in suppressor module. Type mirror contact (1NC) conforming to IEC 60947-4-1, type mechanically linked (1NO-1NC) conforming to IEC 60947-5-1. TeSys D contactor offers quick simple setup, while maintaining a compact size of 45 and 55mm (40 to 65A) as well as compliance with international standards. From 40 to 65A versions are equipped with EverLink, this new patented terminal technology, assures a permanent tightening quality even in the event of conductor creep.
- Motor control resistive load contactor application
- 0.2W AC-3, 1.56W AC-1 Power dissipation
Applications
Industrial, Power Management, Automation & Process Control, Motor Drive & Control
Product details
| Relay Mounting | DIN Rail |
| Coil Voltage VDC Nom | - |
| Switching Current AC1 | 20A |
| Load Current Resistive | 25A |
| Product Range | TeSys D Series |
| Switching Current AC3 | 9A |
| Coil Voltage VAC Nom | 400V |
| Operating Voltage | 400VAC |
| No. of Poles | 3 Pole |
| Load Current Inductive | 9A |
| Contact Configuration | DPDT |
| Switching Power AC3 | 4kW |
| Switching Power AC1 | 1hp |
Other details
| Brand | SCHNEIDER ELECTRIC / TELEMECANIQUE |
| Part Number | LC1D09V7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
