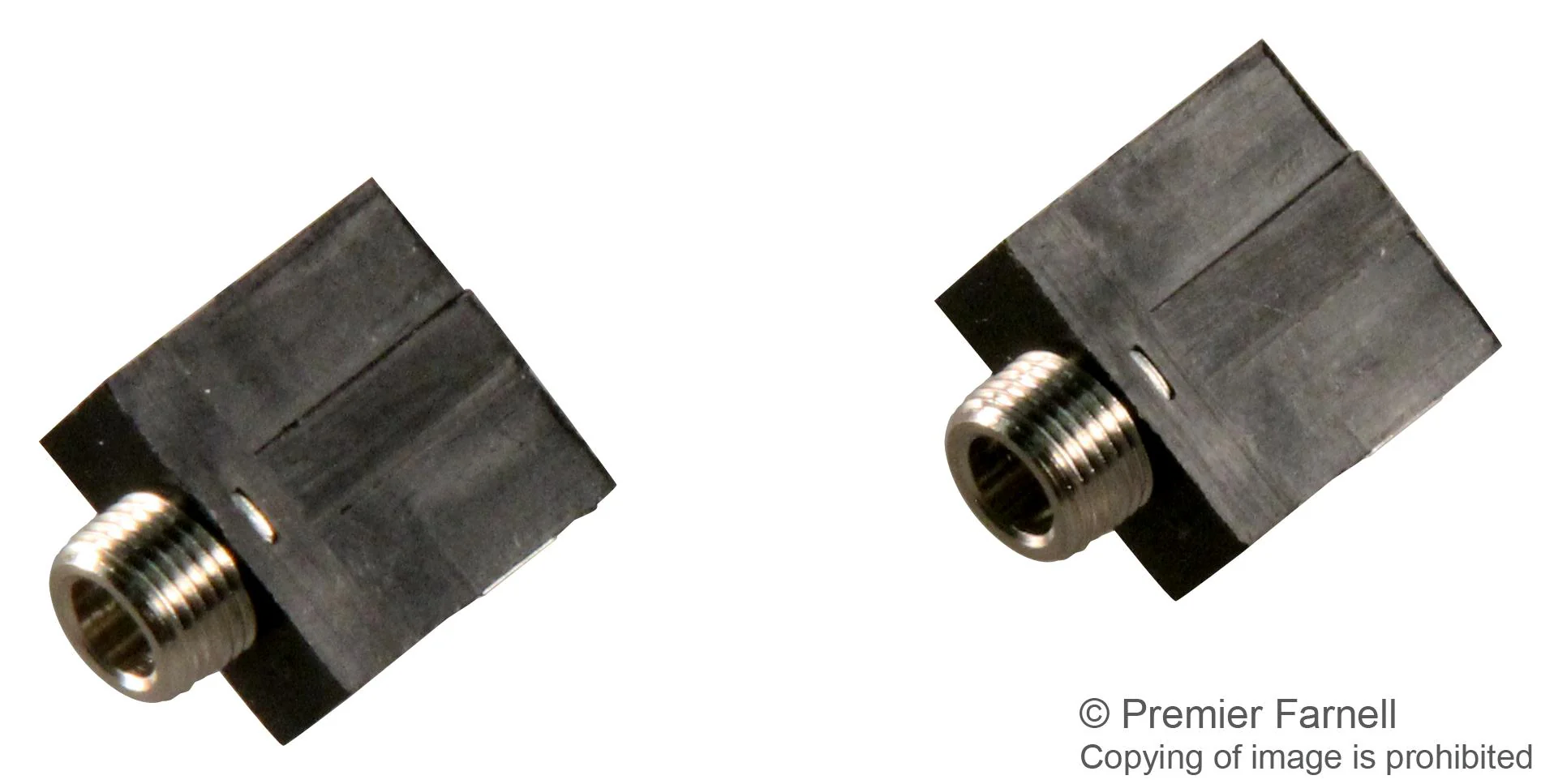

Schurter 4832.232 4832.232 Phone Audio Connector 3 Contacts Jack 3.5 mm PCB Mount Metal Body
The 4832.232 from Schurter is a 3 pole, 3.5mm shielded socket and silver plated PCB terminals. It is used for data and signal transfer.
- Diameter of 3.5mm
- PCB mounting, screw on mounting from rear side
- Lifetime of 5000 insertions
- Allowable operation temperature range from -20°C to 70°C
- Dielectric strength of 500VDC
- DC rating is 0.5A at 30VDC
- AC rating is 0.5A at 30VAC
- Insulation resistance > 100Mohm at 500VDC
- Audio entrances and exits
- Screened housing
Other details
| Brand | SCHURTER |
| Part Number | 4832.232 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Application Note EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$7.57
