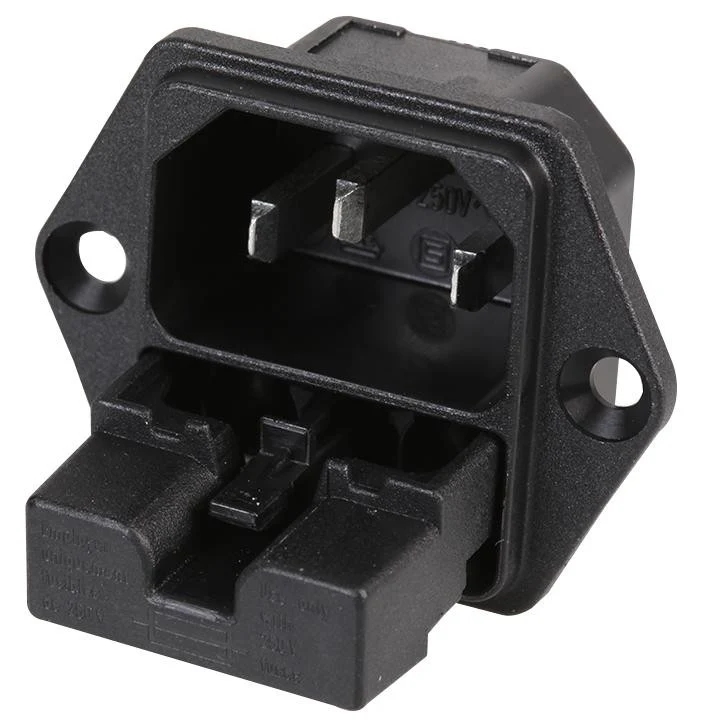

SCHURTER 6220.2300 Power Entry Connector, 6220 Series, Plug, 250 V, 10 A, Panel Mount, Quick Connect
- 2 Function, 2-pole fused appliance inlets
- Screw-on type panel mounts from front or rear
- Require two 5x20mm fuses
- Housing Material: Thermoplastic, Black, UL 94V-0
- Protection Class: Class I acc. to IEC 61140
- Operating Temperature: -25�C to +70�C
- Cut-Out: 27.5x31.5mm
- Fixing Centres: 36mm
Product details
| Gender | Plug |
| Current Rating | 10A |
| Product Range | 6220 Series |
| Contact Termination Type | Quick Connect |
| Voltage Rating | 250V |
| Connector Mounting | Panel Mount |
Other details
| Brand | SCHURTER |
| Part Number | 6220.2300 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Product Change Notice EN | |
