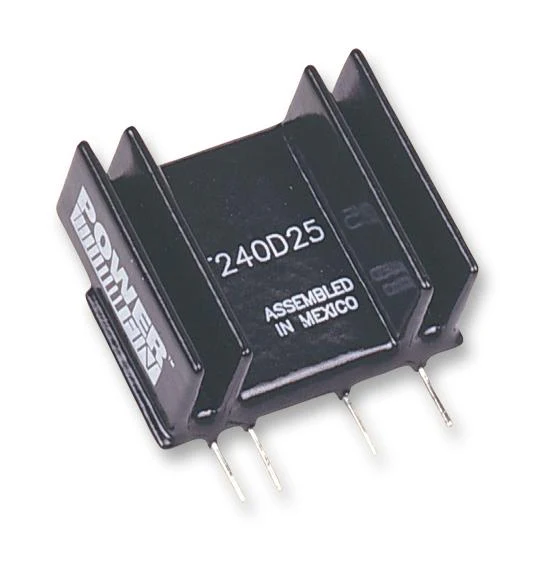

SENSATA/CRYDOM PF240D25R PF240D25R Solid State Relay Powerfin / PF Series SIP SPST-NO 25 A 280 Vrms PCB Through Hole
The PF240D25R is a 1-phase PCB-mount SIP Solid State Relay with thermally conductive epoxy encapsulation. The PF series solid state relay features SCR output for heavy industrial loads and random turn-on switching mode.
- DC control input
- Normally open output
- 600Vpk Transient overvoltage
- 0.1mA RMS Maximum off-state leakage current at rated voltage
- 0.06ARMS Minimum load current
- 250Apk Maximum surge current (16.6ms)
- 1.6Vpk Maximum on-state voltage drop at rated current
- 0.5 Minimum power factor (with maximum load)
- 3VDC Minimum turn-on voltage
- 1VDC Minimum turn-off voltage
- 4000VRMS Dielectric strength (input/output/base (50/60Hz))
- 8pF Maximum capacitance (input/output)
Industrial
Warnings Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.Other details
| Brand | SENSATA/CRYDOM |
| Part Number | PF240D25R |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
