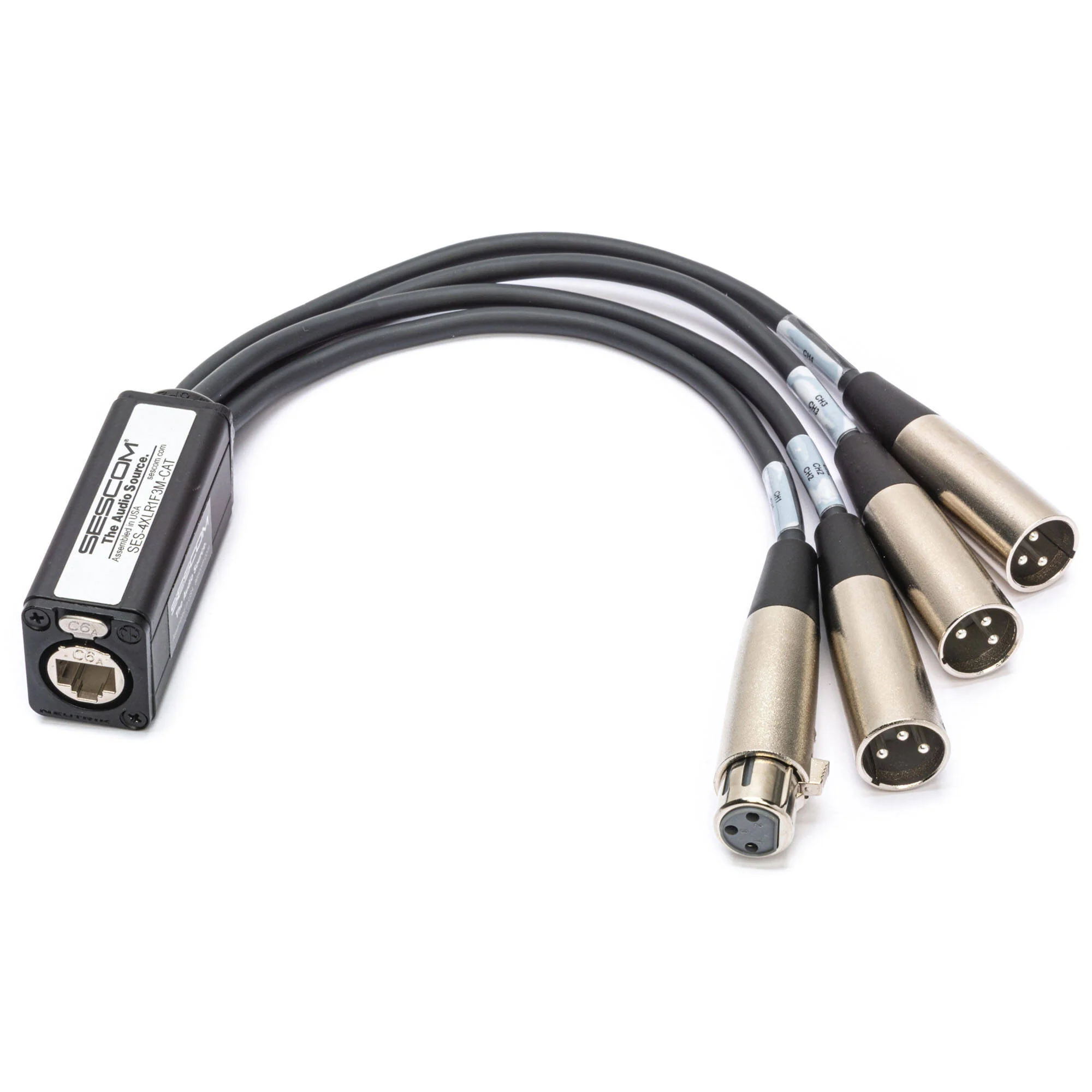

Sescom SES-4XLR1F3M-CAT 4-Channel Passive Audio Extender Fanout, 1 x (F) XLR, 3 x (M) XLR to RJ45 (F) (12")

Sescom SES-4XLR1F3M-CAT 4-Channel Passive Audio Extender Fanout, 1 x (F) XLR, 3 x (M) XLR to RJ45 (F) (12")

Sescom SES-4XLR1F3M-CAT Overview

  • 1Description
  • 2Transmission Distance
  • 3Passive Extender
  • 4Cable Fanout

Send up to four channels of analog or digital audio, AES/EBU, or DMX over cat 5/6/7 cable using the SES-4XLR1F3M-CAT 4-Channel Passive Audio Extender from Sescom. This 12" cable fanout incorporates one female RJ45, one female XLR, and three male XLR connectors, enabling you to replace bulky multichannel audio snakes with a single, low-profile cable.

Note:
This unit supports 48V phantom power only when paired with shielded cable.
Transmission Distance
  • Digital audio 48 kHz, 24-bit AES/EBU: 1000'
  • Analog balance, line-level audio: 2000'
  • Mic level audio: 2000'
Passive Extender
This passive extender is compatible with analog or digital mixers, consoles, breakouts boxes, and more and it supports balanced mic level, AES/EBU digital, and DMX signals
Cable Fanout
This 12" cable fanout eliminates the bulk of multichannel snakes by consolidating four cables into a single cat 5/5e/6/7 cable
    Table of Contents
    • Description
    • Transmission Distance
    • Passive Extender
    • Cable Fanout

    Sescom SES-4XLR1F3M-CAT Specs

    Interfaces
    Inputs 1 x XLR 3-Pin Female
    3 x XLR 3-Pin Male
    Outputs 1 x Ethercon Female
    Transmission
    Audio Format AES/EBU:
    Analog:
    DMX:
    Supported Cable Types Cat 5/5e/6/7
    General
    Cable Length 12" / 30.5Ā cm
    Packaging Info
    Package Weight 0.615 lb
    Box Dimensions (LxWxH) 6.55 x 4.65 x 1.05"

    Sescom SES-4XLR1F3M-CAT Reviews
