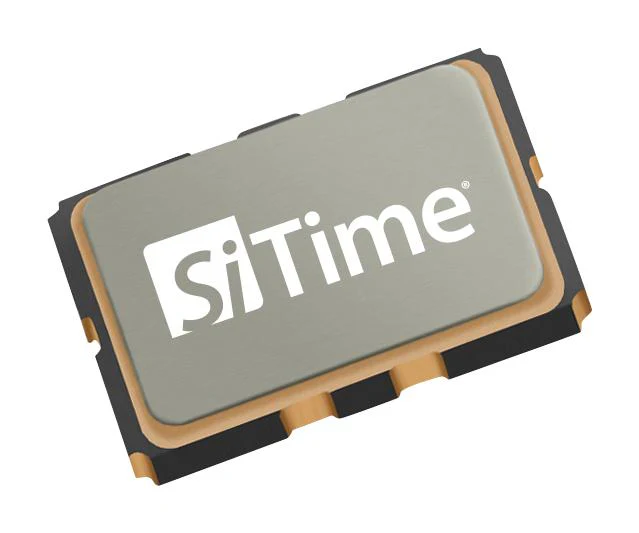

Sitime SIT5155AI-FK-33VT-10.000000X Vctcxo 10 MHz 0.5 ppm Lvcmos 3.3 V SMD 5mm x 3.2mm SiT5155 Series

The SiT5155 Series of Super-TCXO's from SiTime are engineered for tight-stability, high-reliability while being highly flexible. Based on SiTime's unique DualMEMS� temperature sensing and TurboCompensation� technology, this device delivers excellent dynamic performance in the presence of common environmental hazards, such as airflow, temperature perturbation, vibration, shock, power supply noise and electromagnetic interference (EMI).

• Exceptional dynamic stability under airflow and fast tempature ramp
• Enables fastest satellite lock and minimizes loss of satellite lock in high-vibration environments
• 20x better phase noise under vibration
• No activity dips or microjumps
• Eliminates the need for costly screening or burn-in test
• Reduces BOM by eliminating a dedicated LDO for the TCXO
• LVCMOS or Clipped sinewave output
• Optimize for best balance between EMI and jitter
• Eliminate frequency shift caused by board noise
• Superior reliability

• 1 billion hours MTBF

Product details

Frequency Nom	10MHz
Frequency Stability + / -	0.5ppm
Oscillator Output Compatibility	LVCMOS
Supply Voltage Nom	3.3V
Oscillator Case	SMD, 5mm x 3.2mm
Product Range	SiT5155 Series
Operating Temperature Min	-40°C
Operating Temperature Max	85°C
RoHS Phthalates Compliant	To Be Advised

Other details

Brand	SITIME
Part Number	SIT5155AI-FK-33VT-10.000000X
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Enhanced Product Overview EN
