Smart-AVI SM-DVN-4S 4-Port, Single-Head DVI KVM Switch
Smart-AVI SM-DVN-4S-S Overview

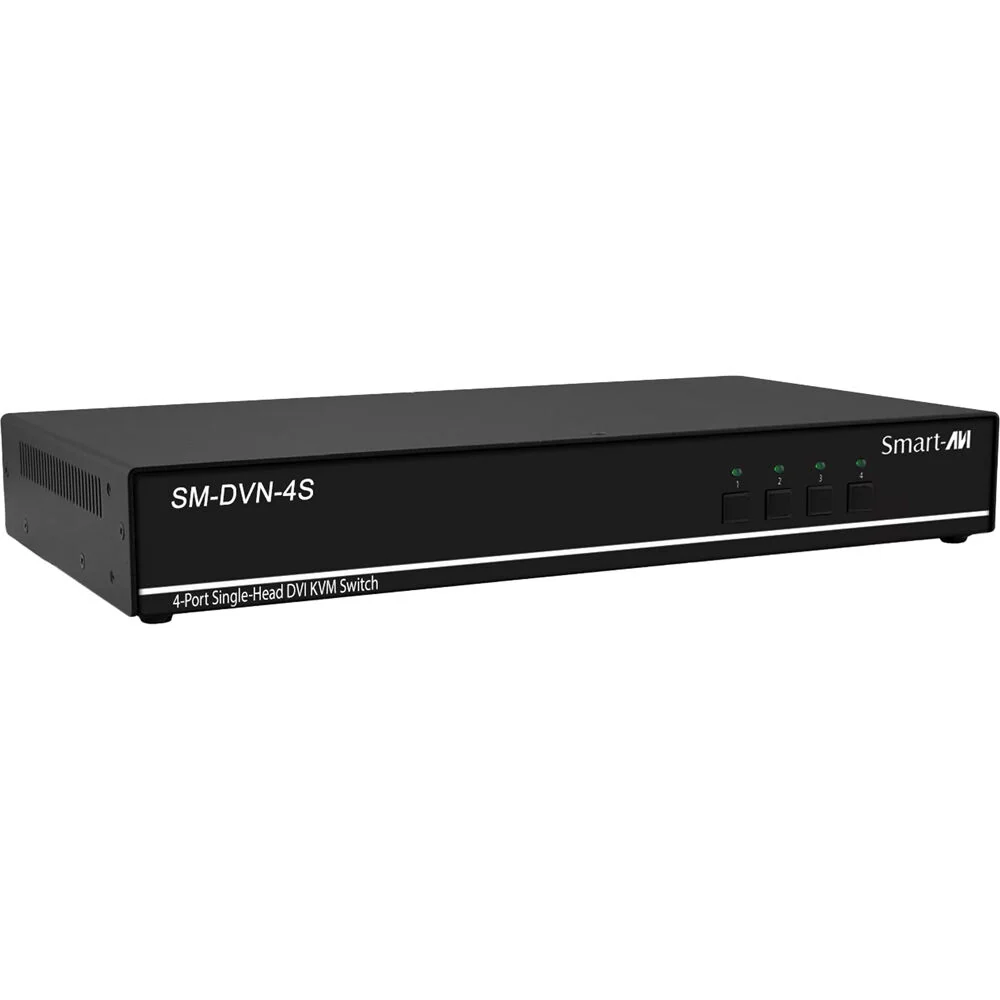

Designed for versatility, the SM-DVN-4S 4-Port, Single-Head DVI KVM Switch from Smart-AVI allows you to simultaneously control up to four connected computer systems using a single keyboard and mouse. Additionally, with support for up to one 2560 x 1600 resolution DVI-I monitor and audio sharing, you can receive video and sound from your connected devices as you smoothly switch between them.

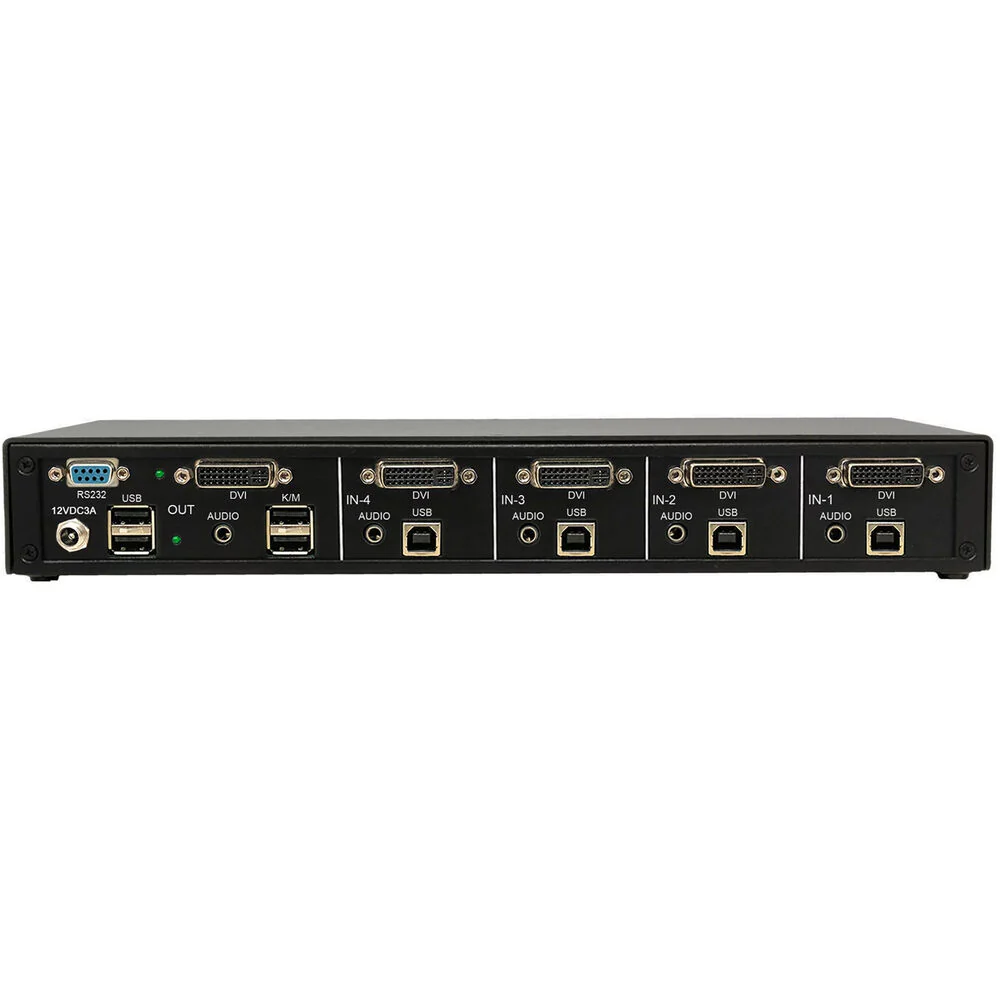

Computer systems may be connected to the rear-facing USB-B 2.0 ports, DVI-I dual link connectors, and 3.5mm audio jacks using separately purchased cables while your keyboard and mouse plug into the dedicated USB-A ports. Up to two additional devices such as flash drives, printers, and cameras may be connected to the USB-A 2.0 ports and shared across the computers. Front-facing buttons allow you to quickly switch between computers. This switch also supports keyboard hotkeys and RS-232 serial control.
In the Box
- Smart-AVI SM-DVN-4S 4-Port, Single-Head DVI KVM Switch
- Power Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
Smart-AVI SM-DVN-4S-SSpecs
| # of Systems Supported |
4
|
| KVM I/O |
4x DVI-I
4x USB-B 2.0 4x 1/8" / 3.5 mm Line-In |
| Console I/O |
1x DVI-I
2x USB-A 1.1 (Keyboard/Mouse) 2x USB-A 2.0 1x 1/8" / 3.5 mm Line-Out 1x DE-9/DB-9 (RS-232) |
| Supported Resolutions |
2560 x 1600
1920 x 1200 1920 x 1080 |
| # of Systems Supported |
4
|
| KVM I/O |
4x DVI-I
4x USB-B 2.0 4x 1/8" / 3.5 mm Line-In |
| Console I/O |
1x DVI-I
2x USB-A 1.1 (Keyboard/Mouse) 2x USB-A 2.0 1x 1/8" / 3.5 mm Line-Out 1x DE-9/DB-9 (RS-232) |
| Supported Resolutions |
2560 x 1600
1920 x 1200 1920 x 1080 |
| USB Keyboard/Mouse Emulation |
Yes
|
| Power Source |
AC Adapter
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Certifications |
UL, CE, RoHS
|
| Storage Conditions |
-4 to 140Ā°F / -20 to 60Ā°CĀ
|
| Dimensions |
12.57 x 6.69 x 1.76" / 31.93 x 16.99 x 4.47Ā cm
|
| Weight |
4.2Ā lb / 1.9Ā kg
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
