StarTech 3-Port FireWire 800/400 (1394b/a) PCIe Card Adapter
StarTech PEX1394B3 Overview

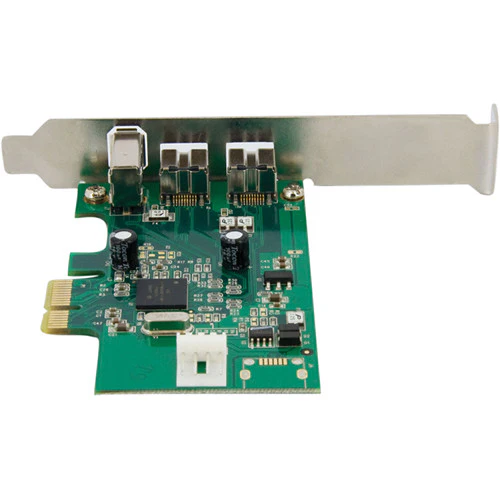

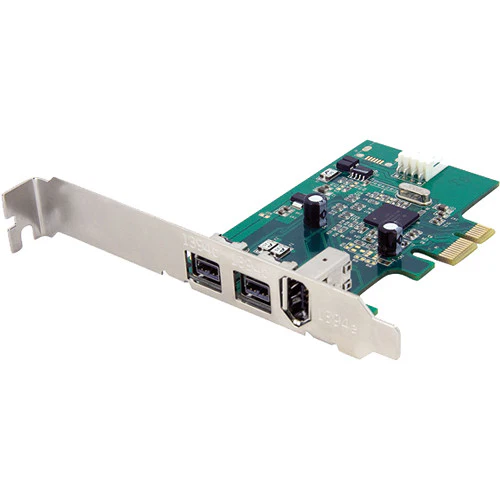

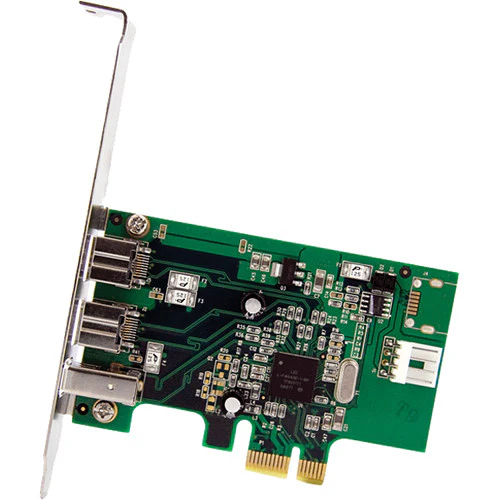

The 3-Port FireWire 800/400 (1394b/a) PCIe Card Adapter from StarTech lets you add two native FireWire 800 ports and one FireWire 400 port to your computer through a PCIe expansion slot. The adapter can be installed in a PCIe slot to add two 9-pin FireWire 800 (IEEE 1394b ) ports and one 6-pin FireWire 400 port (IEEE 1394a ), providing broad compatibility with a wide range of FireWire devices like DV camcorders, external hard drives, digital cameras, and more. The card adapter features a native (single chip) PCIe chipset.
Lets you add three FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices
Includes two 9-pin FireWire 800 ports (IEEE 1394b), each with transfer rates of up to 800 Mb/s and one 6-pin FireWire 400 port (IEEE 1394a) with transfer rates of up to 400 Mb/s
Utilizes a native PCIe chipset design rather than a bridge chip, ensuring a fast, reliable, and cost-effective FireWire expansion
Compliant with IEEE 1394b and is backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
Includes a low-profile/half-height installation bracket
Internal power connector for high-powered FireWire devices
Plug-and-play and hot-swappable
Applications
Add a high-speed FireWire port to a desktop computer without any FireWire ports
Connect a digital camera to a desktop computer with a PCIe slot to download photos and video
Connect a high-speed external hard drive to a PCIe-enabled system
UPC: 065030825139

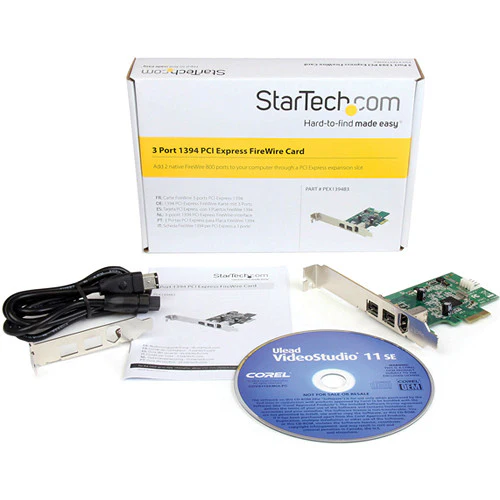

Items Included
- StarTech 3-Port FireWire 800/400 (1394b/a) PCIe Card Adapter
- FireWire Cable
- Low-Profile Bracket
- Software CD
- Limited Lifetime Manufacturer Warranty
Additional Resources
StarTech PEX1394B3 Specs
Key Specs
| Inputs/Outputs |
1x 6-Pin (FireWire 400) Female
2x 9-Pin (FireWire 800) Female 1x Molex 4-Pin Internal |
| Expansion Slot Compatibility |
PCIe x1
|
| Slot Compatibility |
Full Height
|
| OS Compatibility |
Windows 8
Windows 7 Windows Vista Windows XP Windows 2000 Windows ME Windows 98 Windows Server 2012 Windows Server 2008 Windows Server 2003 macOS 10 to 10.9 Linux |
General
| Inputs/Outputs |
1x 6-Pin (FireWire 400) Female
2x 9-Pin (FireWire 800) Female 1x Molex 4-Pin Internal |
| Expansion Slot Compatibility |
PCIe x1
|
| Slot Compatibility |
Full Height
|
Software System Requirements
| OS Compatibility |
Windows 8
Windows 7 Windows Vista Windows XP Windows 2000 Windows ME Windows 98 Windows Server 2012 Windows Server 2008 Windows Server 2003 macOS 10 to 10.9 Linux |
Physical
| Operating Conditions |
32 to 158Ā°F / 0 to 70Ā°CĀ up to 90% Humidity
|
| Storage Conditions |
-4 to 194Ā°F / -20 to 90Ā°CĀ
|
| Certifications |
CE, FCC, RoHS
|
| Dimensions |
4.7 x 3.5 x 0.7" / 119.3 x 88.9 x 17.7Ā mm
|
| Weight |
1.8Ā oz / 51Ā g
|
Packaging Info
| Package Weight |
0.45 lb
|
| Box Dimensions (LxWxH) |
8.1 x 5.7 x 1.5"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
