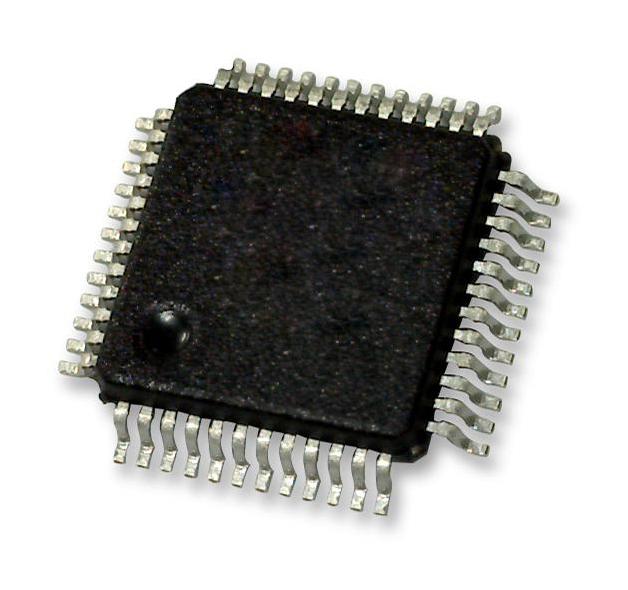

Stmicroelectronics STM32L071CBT6 ARM MCU Ultra Low Power STM32 Family STM32L0 Series Microcontrollers Cortex-M0+ 32 bit

Access line ultra-low power 32bit MCU ARM®-based Cortex®-M0+. It supports up to 10x peripheral communication interfaces and 11x timers. Suitable for use in gas/water meters and industrial sensors, healthcare and fitness equipment, remote control and user interface, PC peripherals, gaming, GPS equipment, alarm system, wired and wireless sensors, video intercom applications.

• Ultra-safe, low power BOR (brownout reset) with 5 selectable thresholds
• Ultra-low power POR/PDR, programmable voltage detector (PVD)
• Up to 84 fast I/Os (78 I/Os 5V tolerant)
• Internal low power 37KHz RC, PLL for CPU clock
• USART, SPI supported pre-programmed bootloader
• Serial wire debug supported
• Rich analogue peripherals (12bit ADC 1.14Msps up to 16 channels (down to 1.65V))
• 7-channel DMA controller, supporting ADC, SPI, I2C, USART and timers
• CRC calculation unit
• 96-bit unique ID

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	STMICROELECTRONICS
Part Number	STM32L071CBT6
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
