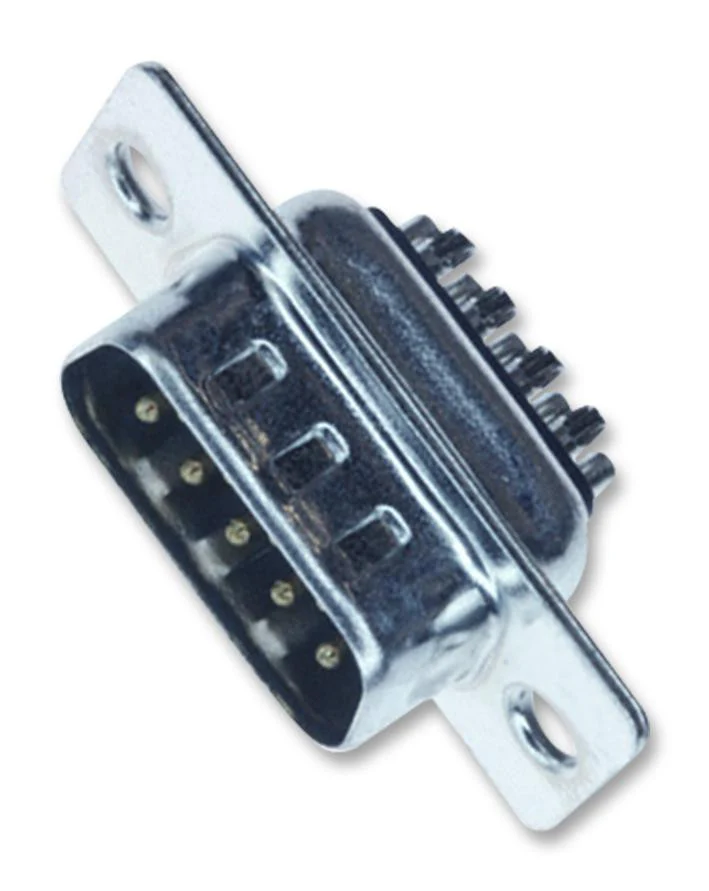

TE CONNECTIVITY 5-747904-5 D Sub Connector, 9 Contacts, Plug, DE, AMPLIMITE HD-20 Series, Steel Body, Solder
The 5-747904-5 is a 9-position straight solder D-sub Plug with 20-size pin type gold-plated phosphor bronze contacts, tin-plated steel shell and thermoplastic insert. The HD-20 series connector has grounding indents and mounting holes mating connector lock.
- 20AWG Wire size
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| No. of Contacts | 9Contacts |
| D Sub Shell Size | DE |
| Gender | Plug |
| Product Range | AMPLIMITE HD-20 Series |
| Contact Termination Type | Solder |
| Connector Body Material | Steel Body |
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 5-747904-5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$1.51
Original: $5.03
-70%TE CONNECTIVITY 5-747904-5 D Sub Connector, 9 Contacts, Plug, DE, AMPLIMITE HD-20 Series, Steel Body, Solderā
$5.03
$1.51Product Information
