Teradek Bolt 6 RX 1500 Monitor Module for Smart 7 Series (V-Mount)
Teradek RX Module 1500 Overview

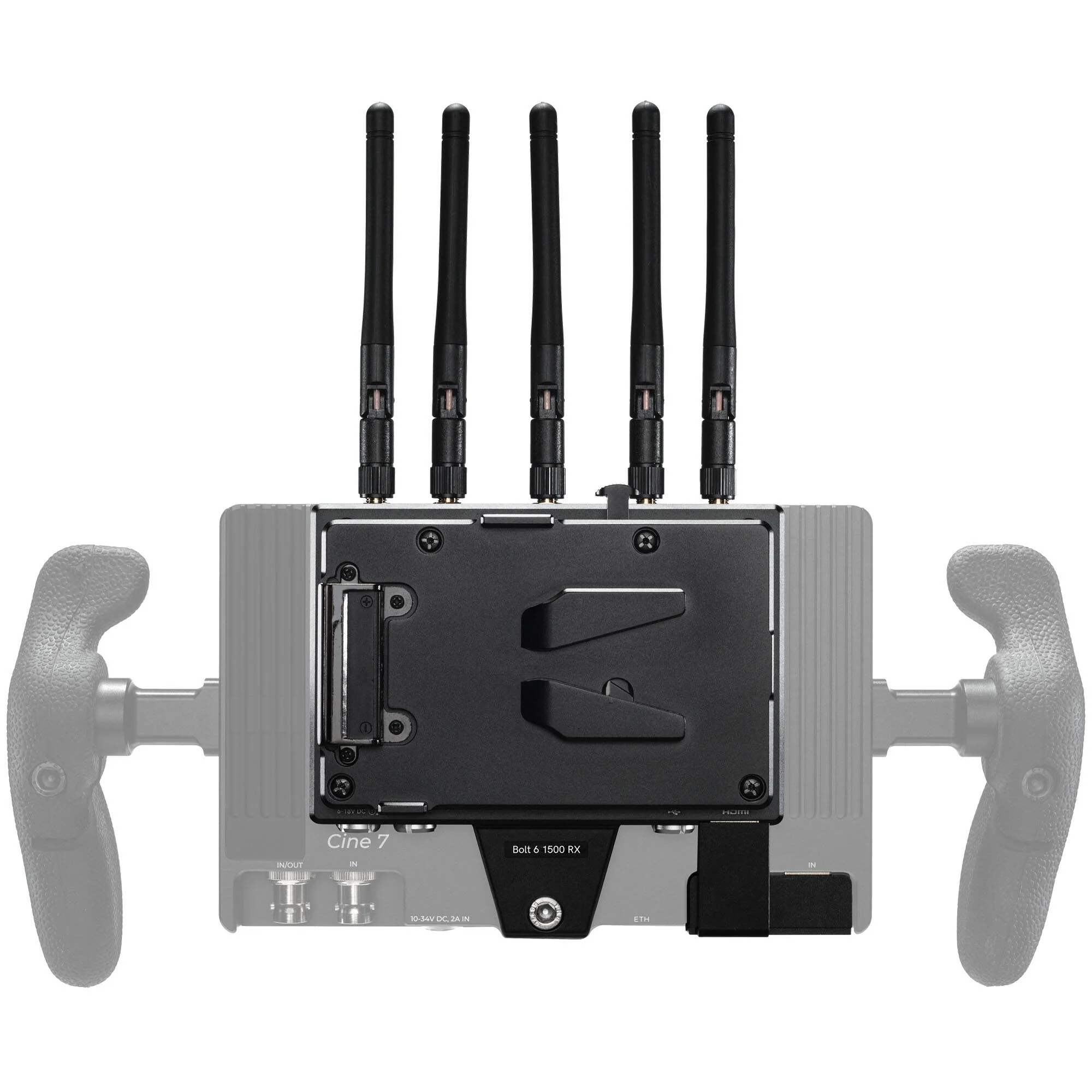

Receive lossless HD video from up to 1500' line-of-sight with the Bolt 6 RX 1500 Monitor Module from Teradek. The module mounts onto the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor and can wirelessly receive up to UHD 4K30 HDR video with 10-bit 4:2:2 HDR support and outputs video via one HDMI port. A V-mount battery plate is included to power the receiver using a professional V-mount battery.
The receiver module supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.
Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to receive over the 6 GHz band. The module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
In the Box
- Teradek Bolt 6 RX 1500 Monitor Module for Smart 7 Series (V-Mount)
- V-Mount Battery Plate
- 5 x Antenna
- HDMI to HDMI Block Adapter
- 1/4"-20 Light Stand Adapter
- Hex Wrench Set
- Screw Socket Head Set
Teradek RX Module 1500 Specs
| Wireless Range | 1500' / 457.2Ā m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI/Wireless (8/10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Timecode Support | Yes |
| DC Input Power | 6 to 18 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 6 W |
| IP Rating | None |
| Operating Temperature | 32 to 72Ā°F / 0 to 40Ā°C |
| Antenna I/O | 5 x RP-SMA Female |
| Video I/O | 1 x HDMI 1.4b Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (18 VDC) Input |
| Other I/O | 2 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27Ā mm |
| Weight | 10.3Ā oz / 292Ā g |
| Package Weight | 3.105 lb |
| Box Dimensions (LxWxH) | 16.5 x 8.8 x 3.7" |
Teradek RX Module 1500 Reviews
