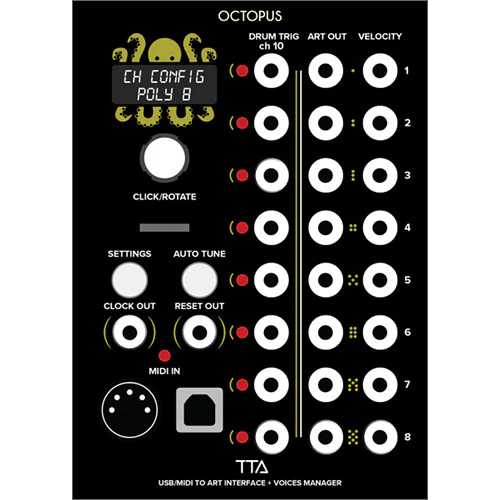

TipTop Audio OCTOPUS ART Controller USB/MIDI to Art Interface + Voice Manager Eurorack Module (18 HP)
TipTop Audio OCTOPUS Overview
Play more voices and notes with ease from a single controller than ever thought possible with the Tiptop Audio OCTOPUS, a powerhouse ART controller in Eurorack format that takes MIDI in via the USB or DIN connector and outputs eight ART channels with 8 velocity CV and 8 drum triggers. The OCTOPUS provides the ART oscillators with unprecedented simplicity when connecting the modular to your computer sequencers, hardware MIDI sequencers, and keyboards.
ART is a new Eurorack signal that contains several types of information in a single cable including perfect pitch for ART-enabled analog and digital oscillators. Its high speed control signals maintain very low jitter for tight timing. Each ART channel can play polyphonic notes, monophonic notes or create multichannel polyphony using an internal voice manager. OCTOPUS is Tiptop Audio's first ART controller with more to follow. It is required to get started with ART.
Note: Please note, OCTOPUS is not a 1V/oct MIDI to CV and should not be confused as one.
- Advance discrete polyphonic ART controller
- MIDI in via the USB or DIN connector
- Outputs 8 ART channels with 8 velocity CV + 8 drum triggers
- Together with the ART oscillators they use OCTOPUS with ART oscillators for simple yet powerful connections
- Connect your modular to your computer sequencer, hardware MIDI sequencer, and keyboard
- Each ART channel can play polyphonic notes, monophonic notes or create multichannel polyphony using an internal voice manager
- Using ART's high-speed control signals maintain very low jitter for tight timing.
- OCTOPUS is required to get started with ART
- 18 HP Eurorack format module
- Maximum depth: 1.6" (40mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 140mA, -12V: 0mA
In the Box
- TipTop Audio OCTOPUS ART Controller USB/MIDI to Art Interface + Voice Manager Eurorack Module (18 HP)
- Busboard Power Cable
- Limited 1-Year Manufacturer Warranty
TipTop Audio OCTOPUS Specs
| Sound Generation |
Analog/Digital Hybrid
|
| Audio I/O |
No
|
| MIDI I/O |
1x DIN 5-Pin Input
|
| CV/Gate I/O |
16x 1/8" / 3.5 mm CV Output
8x 1/8" / 3.5 mm Trigger Output 1x 1/8" / 3.5 mm Gate Output |
| Patch Points |
26x 1/8" / 3.5 mm Output
|
| Eurorack Current Consumption |
140 mA on +12 V Rail
0 mA on -12 V Rail |
| Horizontal Pitch |
18 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog/Digital Hybrid
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
No
|
| MIDI I/O |
1x DIN 5-Pin Input
|
| CV/Gate I/O |
16x 1/8" / 3.5 mm CV Output
8x 1/8" / 3.5 mm Trigger Output 1x 1/8" / 3.5 mm Gate Output |
| Patch Points |
26x 1/8" / 3.5 mm Output
|
| Sync I/O |
1x 1/8" / 3.5 mm Clock Output
|
| Media/Memory Card Slot |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
140 mA on +12 V Rail
0 mA on -12 V Rail |
| Horizontal Pitch |
18 HP
|
| Included Accessories |
No
|
