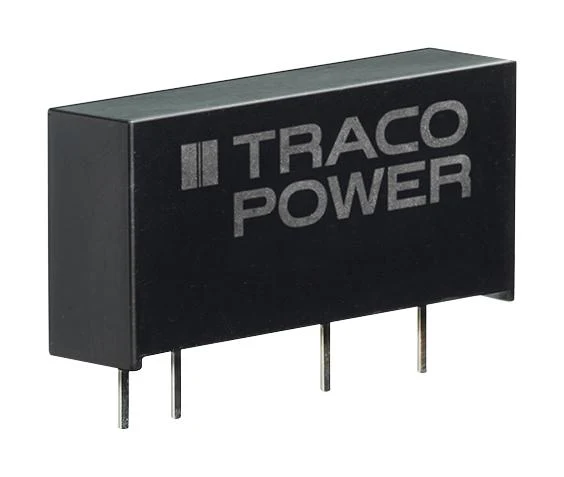

Traco Power TBA 1-1219HI Isolated Board Mount DC/DC Converter ITE 1 Output W 9 V 111 mA
This is a TBA 1-1219HI Isolated Board Mount DC/DC Converter , ITE, 1 Output, 1 W, 9 V, 111 mA product from TRACO POWER with the model number TBA 1-1219HI
Product details
| Power Supply Approvals | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 1W |
| Output Voltage - Output 1 | 9V |
| Output Current - Output 1 | 111mA |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | TBA 1HI Series |
| Input Voltage DC Min | 10.8V |
| Input Voltage DC Max | 13.2V |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Type | SIP |
| DC / DC Converter Mounting | Through Hole |
| Width | 6mm |
| Height | 10mm |
| Depth | 19.5mm |
Other details
| Brand | TRACO POWER |
| Part Number | TBA 1-1219HI |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
