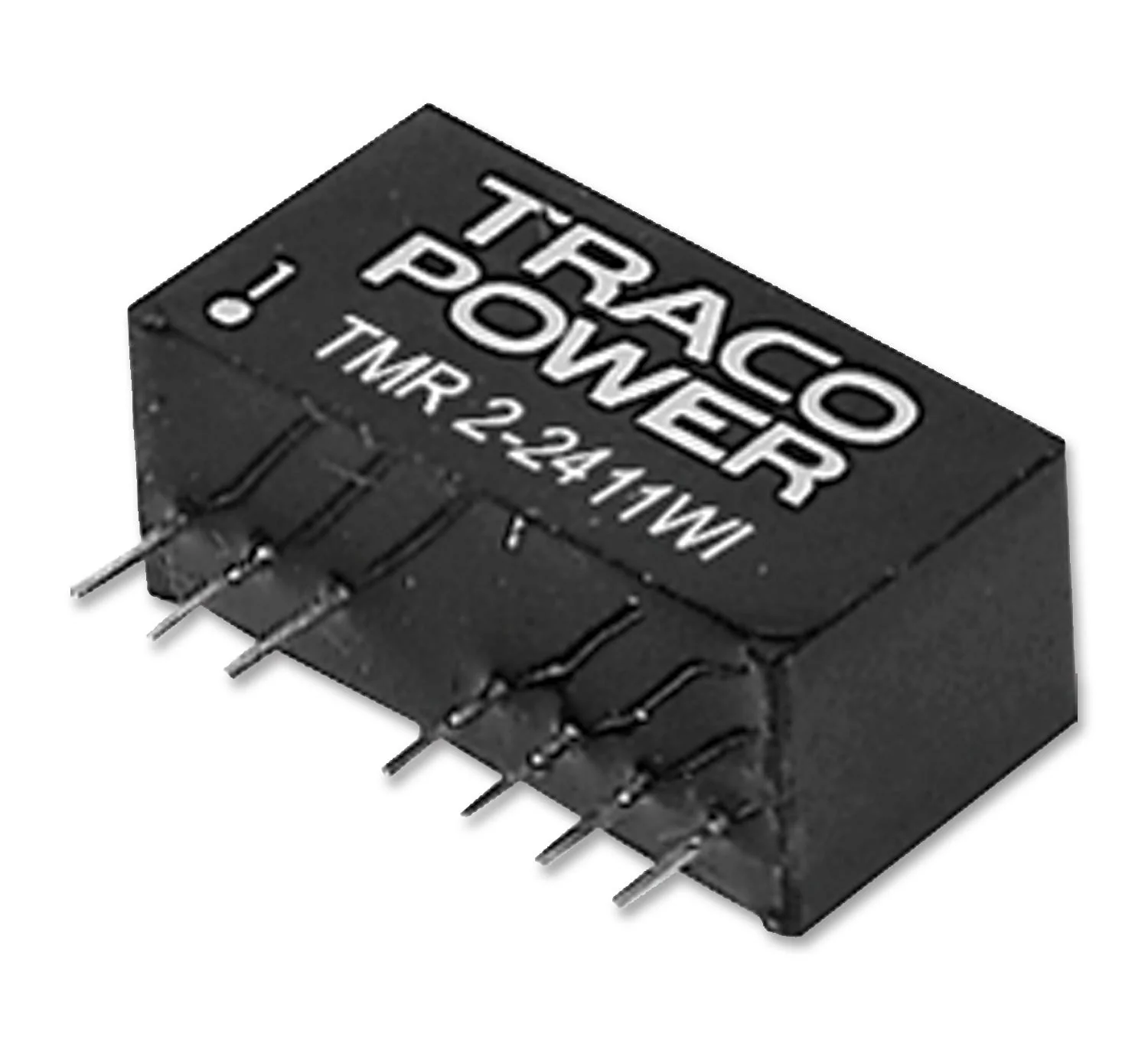

Traco Power TMR 2-2411WI TMR 2-2411WI Isolated Through Hole DC/DC Converter 4:1 Input ITE 2 W 1 Output 5 V 400 mA

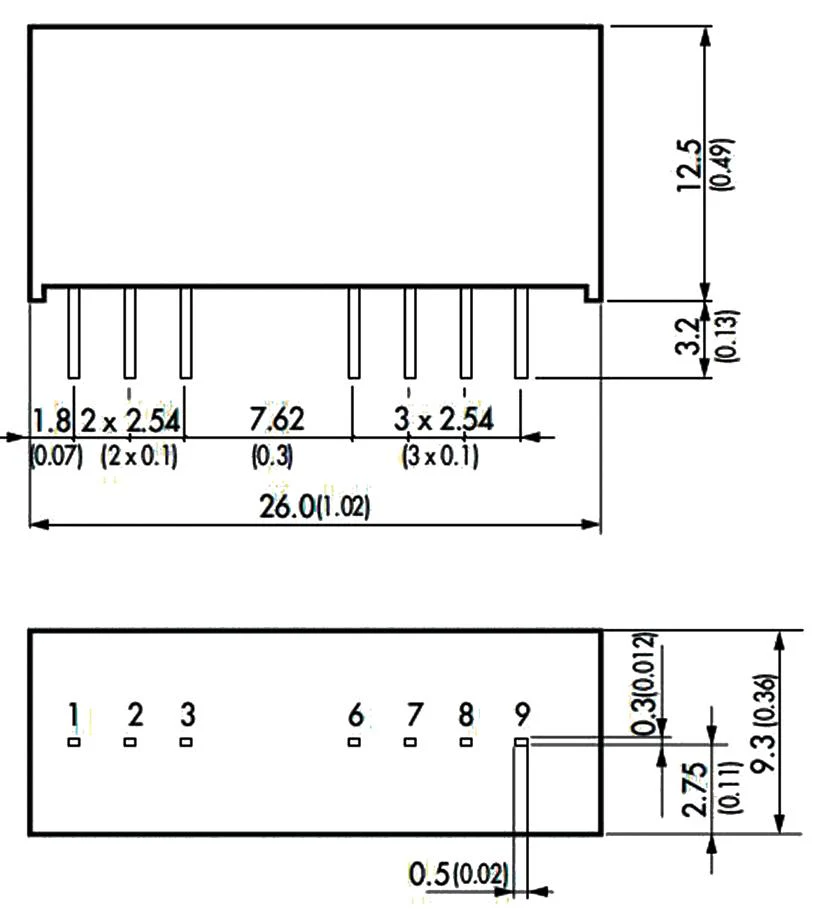

TMR 2-2411WI is TMR 2WI series new family of isolated 2W DC/DC converter modules with regulated output, featuring ultra-wide 4:1. This product comes in an ultra-compact SIP-9 plastic package. It has excellent efficiency of up to 84% allows -40°C to +85°C operation temperatures at full load. Further features include remote On/Off control and continuous short circuit protection. It includes typical applications for these ultra-compact converters are battery-operated equipment and distributed power architectures in communication, instrumentation, and industrial electronics, everywhere where space on the PCB is critical. Approved by designed for EN 62368-1, EN 55032 class A , EN 55032 class A.
- Input voltage from 9 to 36VDC, output voltage is 5VDC, output current is 400mA, efficiency is 76%
- Switching frequency range from 100 to 650kHZ/300(typ)
- High efficiency, excellent load and line regulation
- I/O isolation is 1500VDC
- 3-year product warranty
- Non-conductive plastic housing material, epoxy potting material
- Plastic case housing mount, PCB mounting type
- Natural convection cooling system
Other details
| Brand | TRACO POWER |
| Part Number | TMR 2-2411WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Application Note EN | |
| CAD Multiple Formats EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
