Translite Global TL-HS12 1 x 2 4K30 HDMI Splitter with Extender (230')
Translite Global TL-HS12 Overview

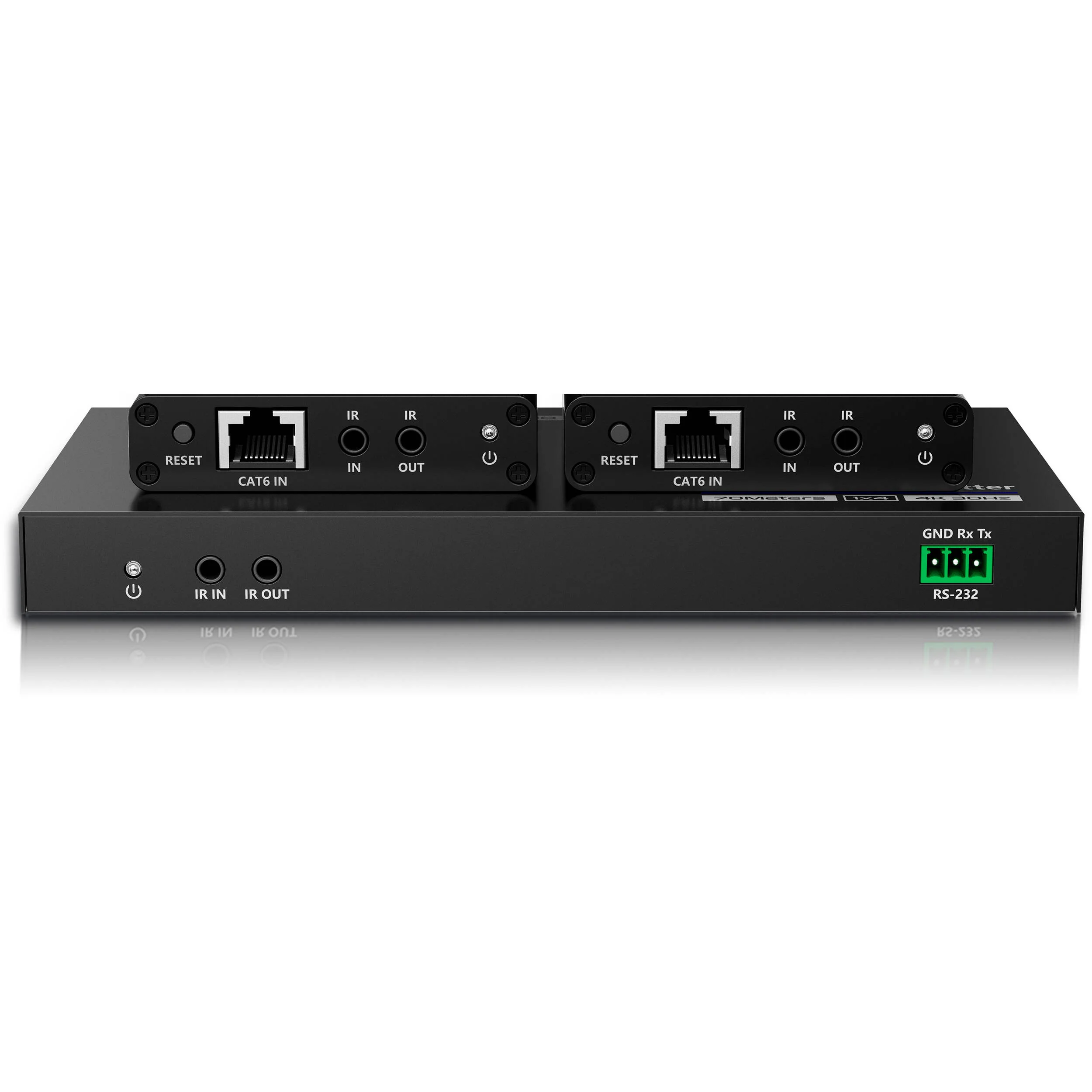

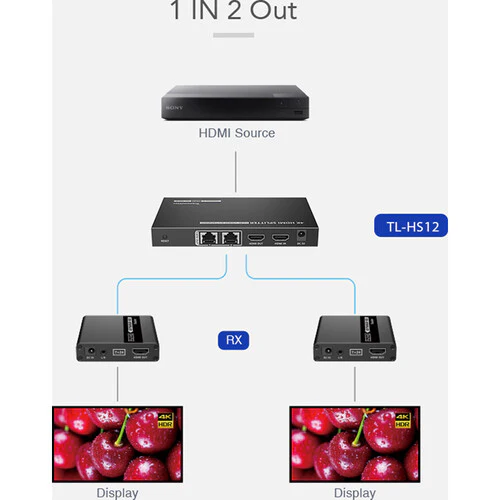

The TL-HS12 1 x 2 4K30 HDMI Splitter with Extender from Translite Global is a single-input, two-output splitter and extender kit that enables you to distribute one HDMI source to two identical displays simultaneously via network cables. It supports UHD 4K30 signals at transmission distances up to 130' and 1080p60 signals up to 230' over a Cat 6, 6A, or 7 network cable. This splitter also supports bidirectional IR pass-through, RS-232 control, HDR10 dynamic range, and 3.5mm left/right audio output.
Up to UHD 4K30 HDR Video
- The TL-HS12 supports up to UHD 4K30 and HDR 10 high dynamic range video.
Secure Transmission
- Lightning, surge, and ESD (electrostatic discharge) protection provides secure and reliable transmission.
Cat 6/6A/7 Transmission
- The TL-HS12 supports zero latency transmission via Cat 6, 6A, or 7 cables.
- It supports 1080p60 video at distances up to 230' and UHD 4K30 up to 130'.
In the Box
- Translite Global TL-HS12 1 x 2 4K30 HDMI Splitter with Extender (230')
- Transmitter Unit
- 2 x Receiver Unit
- 2 x Power Supply
- Limited 1-Year Manufacturer Warranty
Additional Resources
Translite Global TL-HS12Specs
Transmitter Interfaces
| Inputs |
1x HDMI (HDMI 1.4)
|
| Embedded Audio Input |
HDMI
|
| Outputs |
2x RJ45
1x HDMI (HDMI 1.4) |
| Transmitter Other I/O |
1x Block 3-Pin RS-232
1x 1/8" / 3.5 mm IR Input 1x 1/8" / 3.5 mm IR Output |
Receiver Interfaces
| Inputs |
1x RJ45
|
| Outputs |
1x HDMI (HDMI 1.4)
|
| Embedded Audio Output |
HDMI
|
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Input
1x 1/8" / 3.5 mm IR Output 1x 1/8" / 3.5 mm Audio Line Output |
Standards
| HDR Support |
Yes, HDR10
|
| HDCP Support |
Yes, Version 1.4
|
| EDID Support |
No
|
Transmission
| Max Transmission Distance |
1080p at 60 Hz:
229.7' / 70 m (via Cat 6/6a/7) UHD 4K at 30 Hz: 131.2' / 40 m (via Cat 6/6a/7) |
| Video Format |
HDMI
UHD 4K: 24/25/30 fps 1080p: 24/25/30/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576p: 50 fps 576i: 50 fps 480p: 60 fps 480i: 60 fps |
| PC Resolutions |
1680 x 1050
1440 x 900 1366 x 768 1280 x 960 1024 x 768 800 x 600 |
| DTS Compatibility |
DTS-HD High Resolution, DTS-HD Master Audio
|
| Supported Cable Types |
Cat 6/6a/7
|
| Latency |
0 ms
|
Power
| Transmitter Power I/O |
1x Barrel (5 VDC at 1 A) Input
|
| Receiver Power I/O |
1x Barrel (5 VDC at 0.5 A) Input
|
| Transmitter Power Consumption |
Power Supply: 5 VDC at 1 A (7.5 W)
|
| Receiver Power Consumption |
Power Supply: 5 VDC at 500 mA (2.5 W)
|
General
| Transmitter Dimensions |
6 x 3.4 x 0.7" / 151.5 x 86.5 x 19 mm
|
| Receiver Dimensions |
3.1 x 3 x 0.7" / 80 x 75 x 18 mm
|
| Transmitter Weight |
9.9 oz / 280 g
|
| Receiver Weight |
5.6 oz / 160 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
