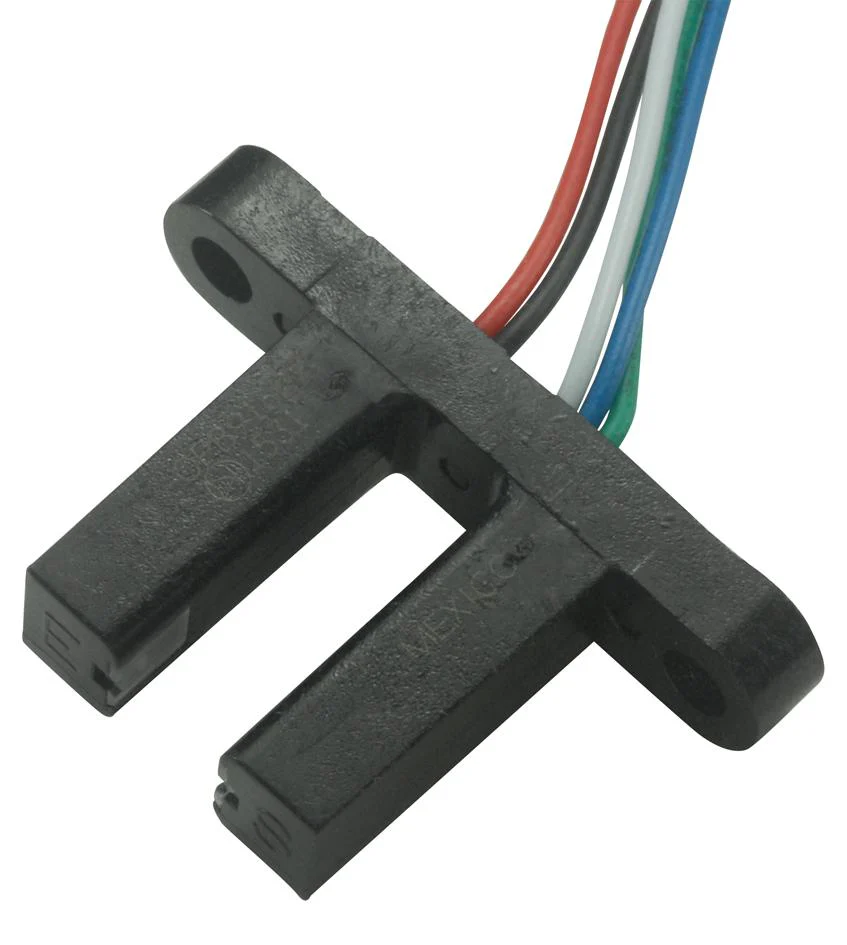

TT Electronics / Optek Technology OPB916BZ Transmissive Photo Interrupter 10K Pullup Panel Chassis 5.08 mm 1.27 50 mA 2 V
The OPB916 series of Photologic® photo integrated circuit switches provide optimum flexibility. Each switch consists of an infrared Light Emitting Diode (LED) and a Photologic® photo integrated circuit, mounted in an opaque housing with clear windows for dust protection. The deep slot allows for a longer reach of the optical path from the 0.650" (16.5mm) mounting plane. Internal apertures are 0.010" x .060" (.25mm x 1.52mm) for the Photologic's "S" side and 0.05" x 0.06" (1.27mm x 1.52mm) for the LED "E" side. Devices in this series exhibit stable performance over supply voltages ranging from 4.5 V to 16.0 V and may be specified as buffered or inverted with an internal 10 kR pull-up resistor or open collector output. Devices are TTL/ LSTTL compatible and can drive up to 10 TTL loads.
- Low power consumption
- Data rates to 250kBaud
- Choice of two logic states and two electrical outputs
- 24" (610mm) Minimum 26 AWG UL listed wires
- 0.200" (5.08mm) Slot width
- 0.635" (16.13mm) Slot depth
Sensing & Instrumentation, Test & Measurement, Industrial
Other details
| Brand | TT ELECTRONICS / OPTEK TECHNOLOGY |
| Part Number | OPB916BZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
