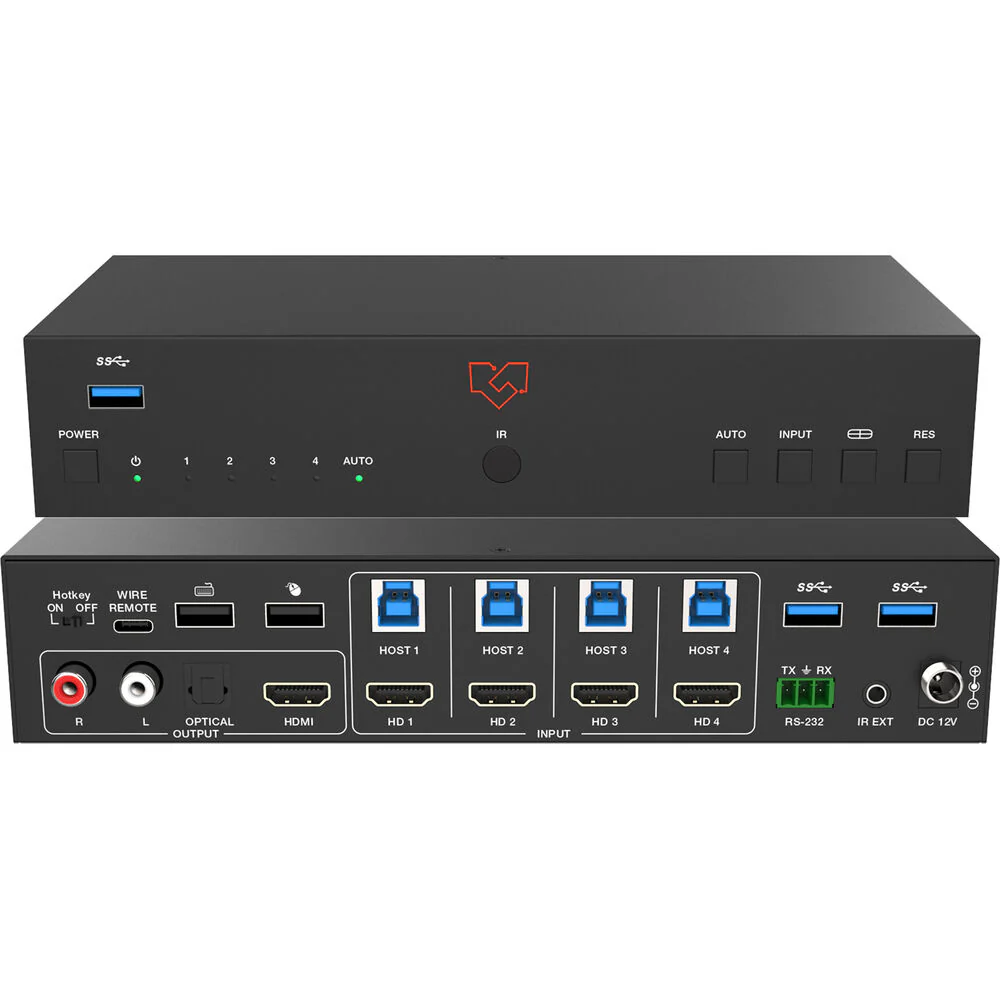

VigilLink 4x1 4K60 HDMI Seamless KVM Switcher with Multiviewer
VigilLink VLKV-H2041M Overview
Use the 4x1 4K60 HDMI Seamless KVM Switcher with Multiviewer from VigilLink to control up to four computers from a single keyboard and display multiple monitors on a single display. The unit supports up to DCI/UHD 4K60 4:4:4 resolution video via HDMI 2.0b and multiple output display modes including PiP, PBP, Triple, Quad, and more. Compatible with macOS, Windows, and Linux computers and their peripherals, this switcher provides USB-B and USB-A ports as well as a 3.5mm analog and optical audio outputs for de-embedding audio to external speakers.
Quick Features
- HDCP 2.2 and HDCP 1.x compliant
- 18 Gb/s uncompressed video bandwidth
- HDMI 2.0b input and output resolution support up to DCI/UHD 4K60 4:4:4Ā
- LPCM, DD+, DTS audio passthrough, up to 7.1 audio channels
- Seamless switching between input channels and combined multiple images on single UHD monitor
- Up to 8 display modes: Single, PiP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
- Seamless switching in single-screen display mode
- Fast switching in multiview display mode
- Using only 1 set of keyboard, mouse, and monitor (KVM) to control 4 computers
- Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gb/s data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam, and hard disk between computers
- Supports multimedia, wireless keyboards, and mouse
- Audio de-embedding via analog and optical fiber audio ports
- Volume control and independent audio selection
- OSD navigation for advanced setting
- EDID management
- Control via front-panel buttons, IR remote, keyboard/mouse hotkeys, OSD menu navigation, controller software, RS-232 commands
- Compact design for easy and flexible installation
Items Included
- VigilLink 4x1 4K60 HDMI Seamless KVM Switcher with Multiviewer
- IR Remote
- 2 x Mounting Ear
- 4 x Screw
- IR Receiver Cable (4.9')
- 3-Pin Terminal Block
- 4 x USB-A to USB-B 3.0 Cable (5.9')
- Power Adapter
- Limited 6-Year Manufacturer Warranty
Additional Resources
VigilLink VLKV-H2041M Specs
Key Specs
| Inputs |
4 x HDMI (HDMI 2.0) Female
|
| Embedded Audio |
HDMI
|
| Outputs |
1x HDMI (HDMI 2.0) Female
1x 2RCA (Stereo Analog) Female 1x TOSLINK (S/PDIF) Female |
| Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
DCI 4K: 60 fps UHD 4K: 60 fps |
Interfaces
| Inputs |
4 x HDMI (HDMI 2.0) Female
|
| Embedded Audio |
HDMI
|
| Outputs |
1x HDMI (HDMI 2.0) Female
1x 2RCA (Stereo Analog) Female 1x TOSLINK (S/PDIF) Female |

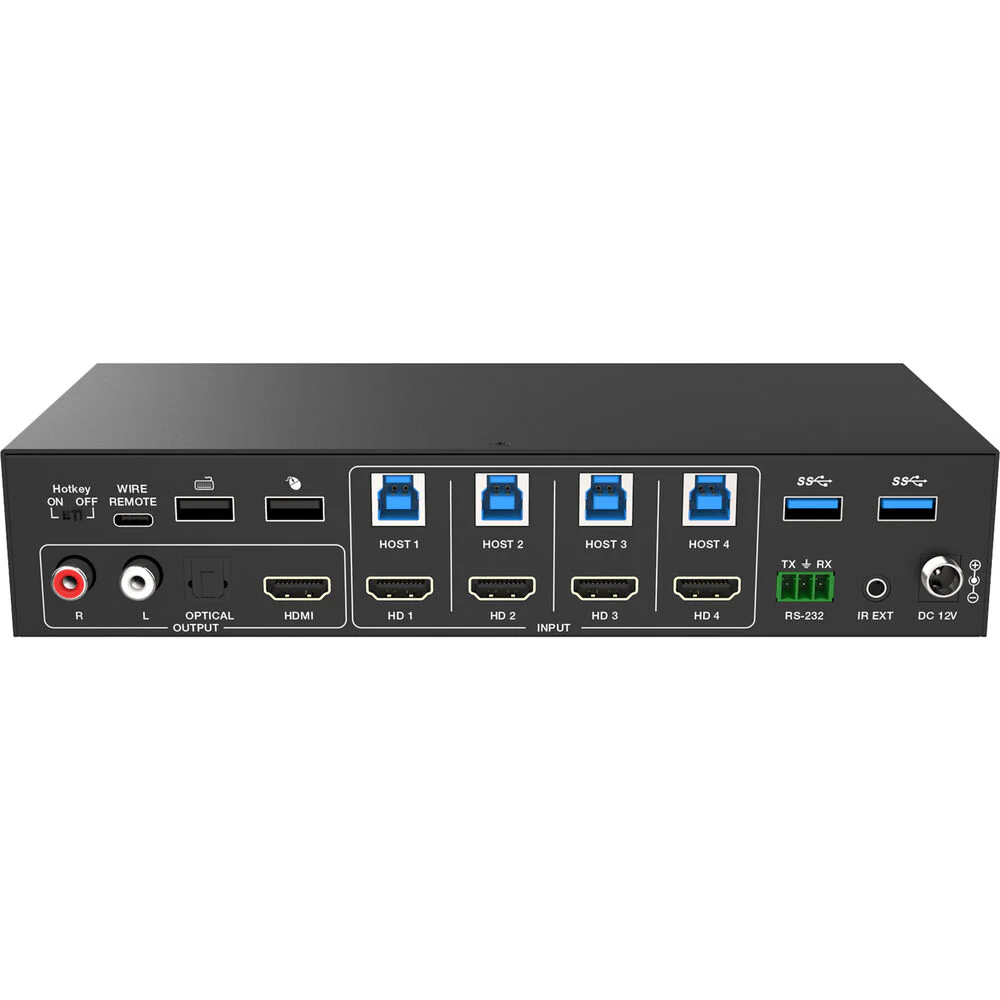

| Other I/O |
1x Block 3-Pin (RS-232) Input/Output
1x 1/8" / 3.5 mm (IR) 4x USB-B 3.0 / 3.1/3.2 Gen 1 2x USB-A 2.0 3x USB-A 3.0 / 3.1/3.2 Gen 1 |
Standards
| HDR Support |
No
|
| HDCP Support |
Yes, Version 2.2
|
| EDID Support |
Yes
|
| Audio Decoding |
DSD, DTS-HD, DTS-HD High-Resolution, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, LPCM, PCM
|
| OS Compatibility |
Windows
Linux macOS |
Transmission
| Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
DCI 4K: 60 fps UHD 4K: 60 fps |
| Maximum Multiple Display Configuration |
4
|
| Audio Format |
Analog
S/PDIF |
| Maximum Data Rate |
18 Gb/s
|
| Signal Level |
5 Vp-p
|
Power
| Power I/O |
1x Barrel (12 VDC at 2.5 A) Input
|
| Power Consumption |
Power Supply: 100 to 240 VAC (18.48 W)
|
| ESD Protection |
Ā±8 kV Air-Gap Discharge
Ā±4 kV Contact Discharge |
General
| Certifications |
CE, FCC, UL
|
| Operating Conditions |
32 to 104Ā°F / 0 to 40Ā°CĀ at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140Ā°F / -20 to 60Ā°CĀ at 20 to 90% Humidity
|
| Material of Construction |
Metal
|
| Dimensions |
8.7 x 3.9 x 1.7" / 220.0 x 100.0 x 44.0Ā mm
|
| Weight |
1Ā lb / 443Ā g
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
