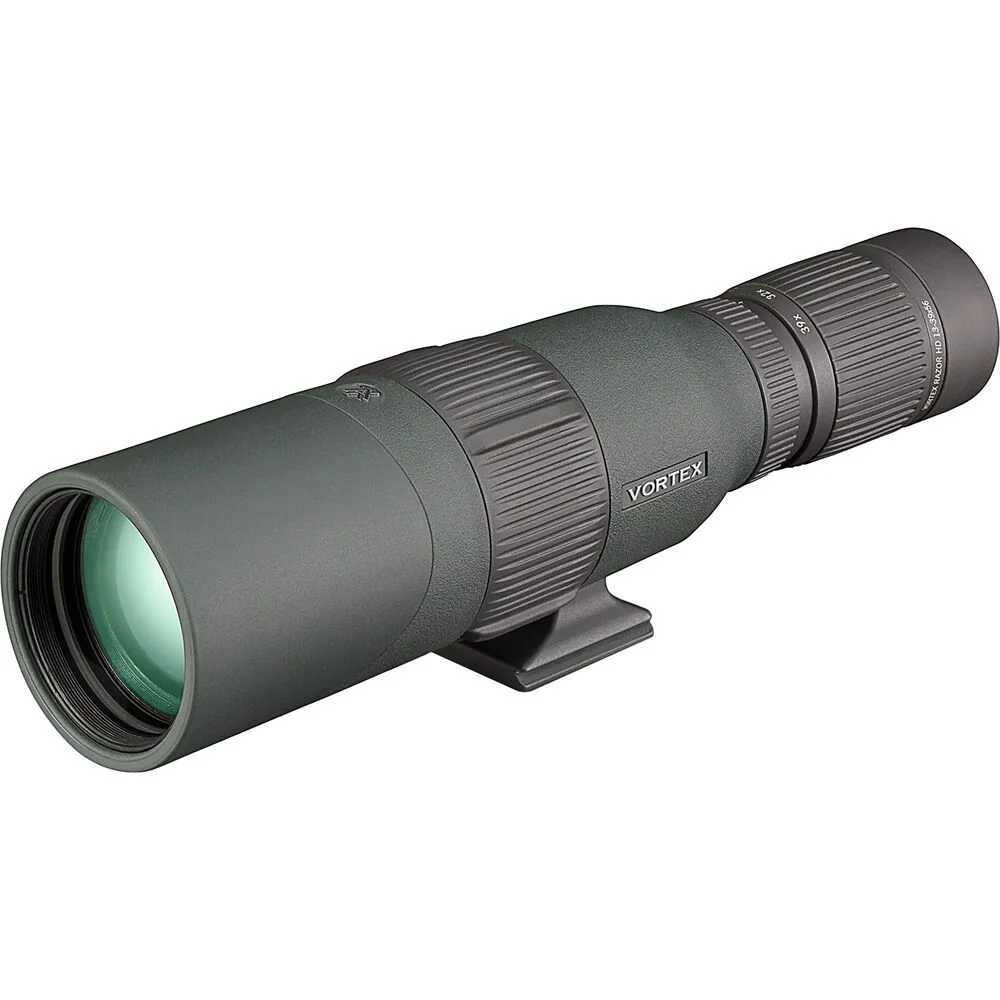

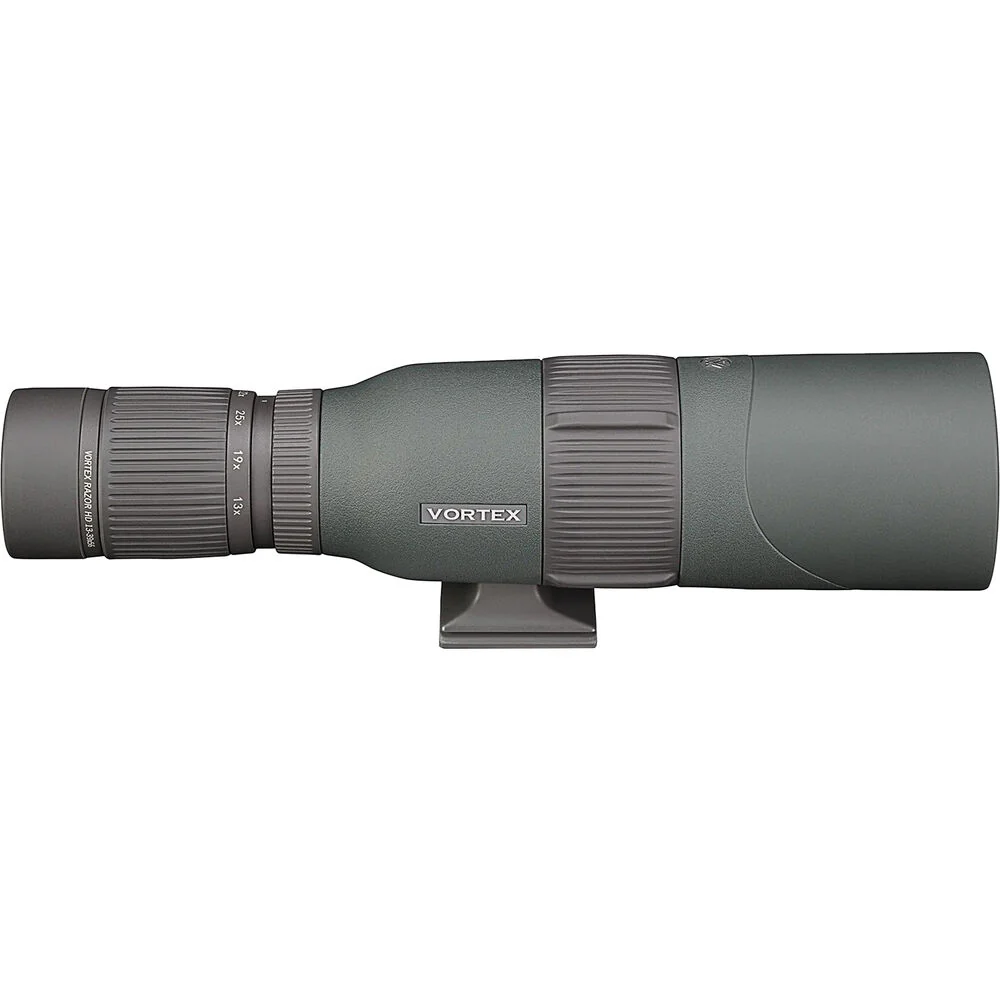

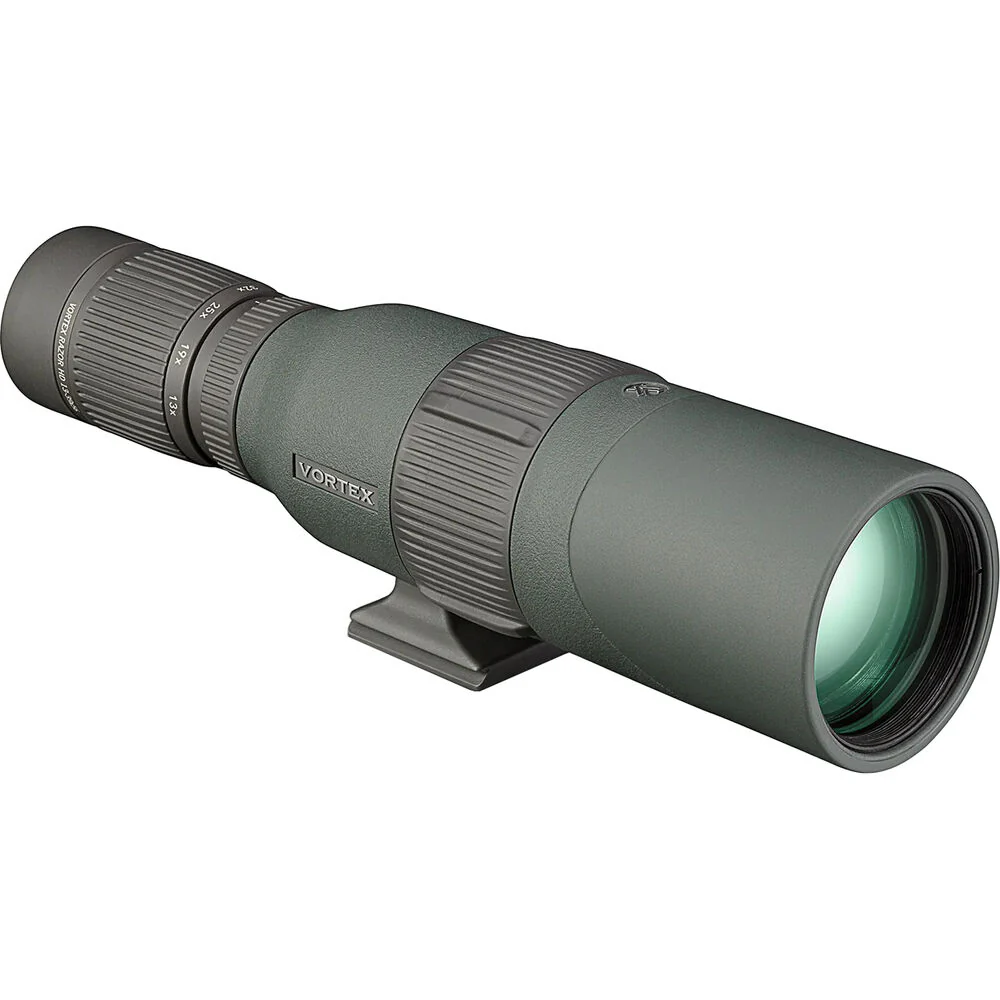

Vortex 13-39x56 Razor HD Spotting Scope (Straight Viewing)
Vortex Razor HD 13-39x56 Overview
Hunters stalking game and shooters aiming far downrange will appreciate the bright, clear, true-colored imagery of the 13-39x56 HD Razor Spotting Scope from Vortex. The apochromatic index-matched lens elements are designed to optimize light transmission, minimize distortion, and virtually eliminate chromatic aberration. All air-to-glass surfaces have Vortex's XR antireflective coatings to minimize light loss and the roof prism has dielectric and phase-correcting treatment. External surfaces bear ArmorTek coating for scratch resistance.
The lightweight body is O-ring sealed and argon filled to be waterproof and resist internal fogging. The scope has a tripod mounting shoe that also accepts a 1/4"-20 mounting bolt. A retractable lens shade keeps sunlight and rain off the objective lens.
- Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
- XR Plus antireflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and good low-light performance.
- Multilayered dielectric prism coatings offer bright, clear, color-accurate images.
- Phase-correction coating on the roof prism enhances resolution and contrast.
- Apochromatic index-matched lenses correct color across the entire visual spectrum.
- Armortek ultrahard exterior lens coatings defend against scratches, oil, and dirt.
- Rubber armor allows a secure, nonslip grip and durable external protection.
- Argon gas purged and O-ring sealed for fog and waterproof performance.
In the Box
- Vortex 13-39x56 Razor HD Spotting Scope (Straight Viewing)
- Neoprene Case
- 2 x Lens Cover
- Lens Cloth
- Limited Lifetime Warranty
Vortex Razor HD 13-39x56 Specs
| Viewing Angle |
Straight
|
| Magnification |
13 to 39x
|
| Objective Lens Diameter |
56 mm
|
| Field of View |
13x: 168.0' @ 1000 yd / 55.8Ā m @ 1000 m
39x: 89.0' @ 1000 yd / 29.5Ā m @ 1000 m |
| Minimum Focus Distance |
9.2' / 2.8Ā m
|
| Exit Pupil Diameter |
13x: 4.3 mm
39x: 1.4 mm |
| Eye Relief |
15.0 to 17.8 mm
|
| Battery / Runtime |
No
|
| Viewing Angle |
Straight
|
| Prism Type |
Roof
|
| Magnification |
13 to 39x
|
| Objective Lens Diameter |
56 mm
|
| Angle of View |
13x: 3.2Ā° (Actual)
39x: 1.7Ā° (Actual) |
| Field of View |
13x: 168.0' @ 1000 yd / 55.8Ā m @ 1000 m
39x: 89.0' @ 1000 yd / 29.5Ā m @ 1000 m |
| Minimum Focus Distance |
9.2' / 2.8Ā m
|
| Exit Pupil Diameter |
13x: 4.3 mm
39x: 1.4 mm |
| Eye Relief |
15.0 to 17.8 mm
|
| Fogproof |
Yes, Argon Filled
|
| Environmental Protection |
Water-Resistant (Unrated)Ā
|
| Battery / Runtime |
No
|
| Filter Thread |
No
|
| Tripod Mounting Thread |
1/4"-20 Female
|
| Dimensions |
L: 11.1" / L: 28.2Ā cm
|
| Weight |
29.5Ā oz / 836.0Ā g
|
| Package Weight |
3.54 lb
|
| Box Dimensions (LxWxH) |
15.2 x 7.6 x 4.5"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
