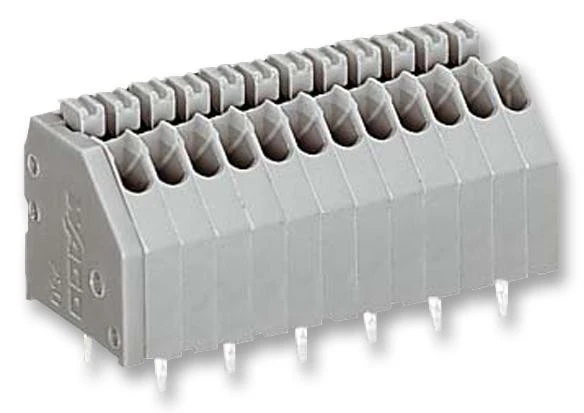

WAGO 250-408 Wire-To-Board Terminal Block, 8 Ways, 24 AWG, 20 AWG, 0.5 mm², Push In
The 250-408. is a 8-pole grey PCB Terminal Strip with push buttons and front-entry wiring. This terminal strip has tin-plated contacts and a polyamide 6.6 insulator. It accepts 24 to 20AWG wire size.
- Cage Clamp® connection method
- Simple push-in termination for solid conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° Conductor entry angle provides easy, space-saving wiring
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Block Orientation | Through Hole 45° |
| Wire Size AWG Max | 20AWG |
| Wire Connection Method | Push In |
| Rated Current | 4A |
| No. of Positions | 8Ways |
| Conductor Area CSA | 0.5mm² |
| Product Range | - |
| Wire Size AWG Min | 24AWG |
| Rated Voltage | 160V |
Other details
| Brand | WAGO |
| Part Number | 250-408 |
| Quantity | Each |
| Technical Data Sheet EN |  |
