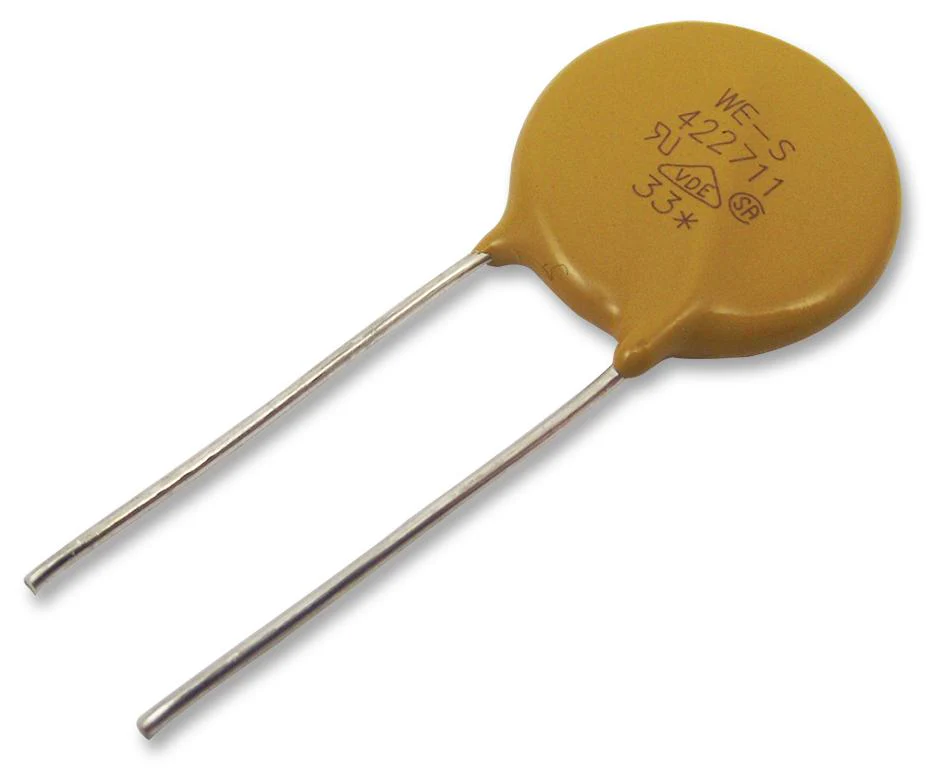

Wurth Elektronik 820442711E TVS Varistor 275 V 350 WE-VD Series 710 Disc 14mm Metal Oxide (MOV)
This is a TVS Varistor, 275 V, 350 V, WE-VD Series, 710 V, Disc 14mm, Metal Oxide Varistor (MOV) product from WURTH ELEKTRONIK with the model number 820442711E
Product details
| Voltage Rating VAC | 275V |
| Voltage Rating V DC | 350V |
| Product Range | WE-VD Series |
| Clamping Voltage Vc Max | 710V |
| Varistor Case Style | Disc 14mm |
| Varistor Type | Metal Oxide Varistor (MOV) |
| Peak Surge Current @ 8/20Āµs | 6kA |
| Operating Temperature Min | -40Ā°C |
| Operating Temperature Max | 125Ā°C |
| Peak Energy (10/1000uS) | 155J |
| Automotive Qualification Standard | - |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 820442711E |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
