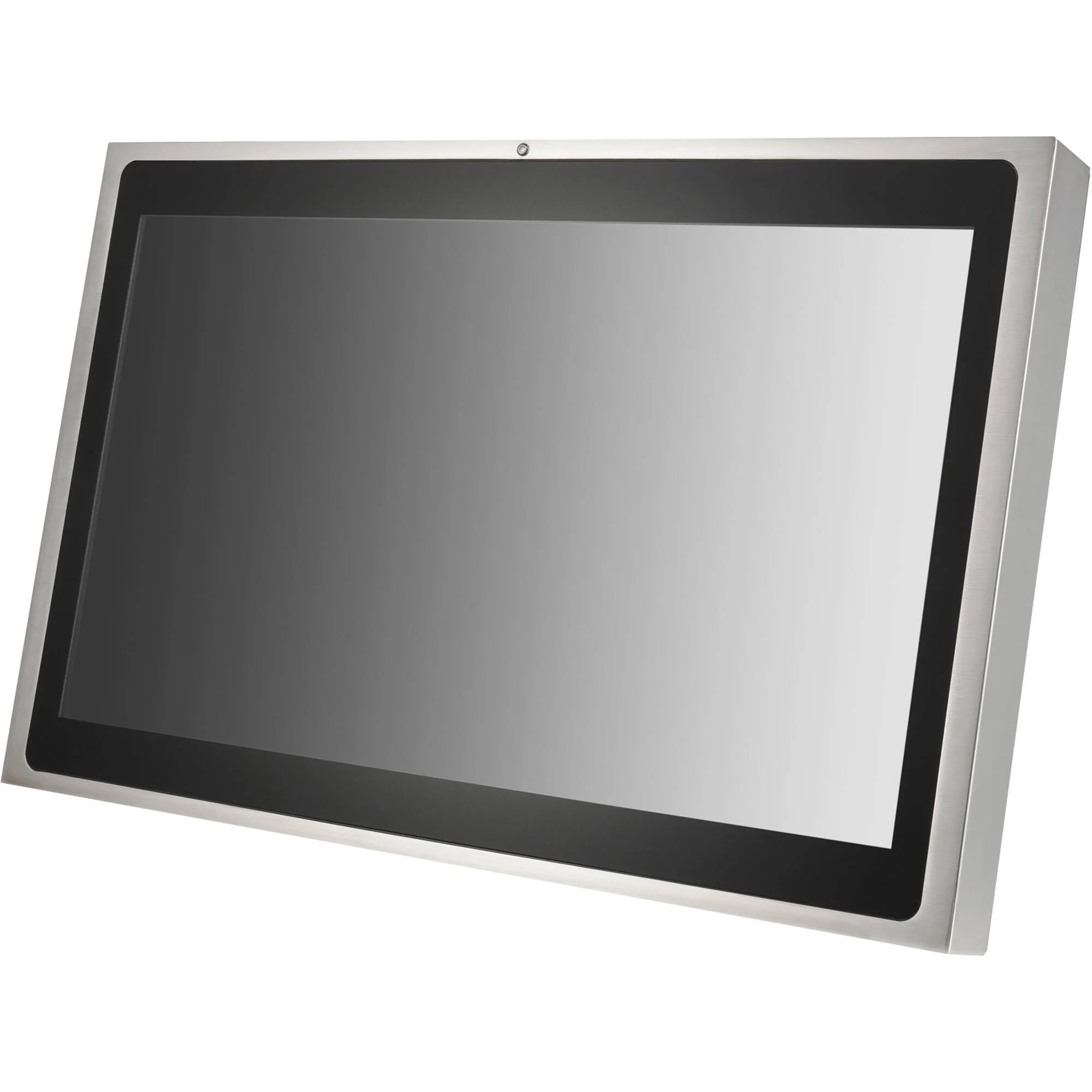

Xenarc 2409CNH 24" Class Full HD Touchscreen IPS LED Display
Xenarc 24-CNH Overview
Add a touchscreen display to nearly any project with the Xenarc 2409CNH 24" Class Full HD Touchscreen IPS LED Display. With its IP69K waterproof and dustproof rating, 10 G shock rating, and 1 G vibration rating, it can be used in installations that would expose it to moisture, dust, or shock, including in marine settings, vehicles, in-car computing, hospitality, mobile production vehicles, and more. It includes a series of waterproof signal and power cables for out-of-the-box installation.
- Plug & play with Windows 7 and up and Android devices; downloadable drivers for other OS support
- Multi-touch touchscreen design
- Multi-monitor touchscreen support
- IP69K high temperature, high pressure spray down protection
- IP66 / NEMA4X rated water and dust resistance
- Sunlight readable with long life LED backlight
- Wide viewing angle IPS (in-plane switching) LCD panel
- Automatic backlight adjustment through built-in ambient light sensor
- High-performance image and video signal processor
- AISS � Advanced Image-Scaling and Shaping
- Last input and power setting memory
- Auto power-on upon signal detection

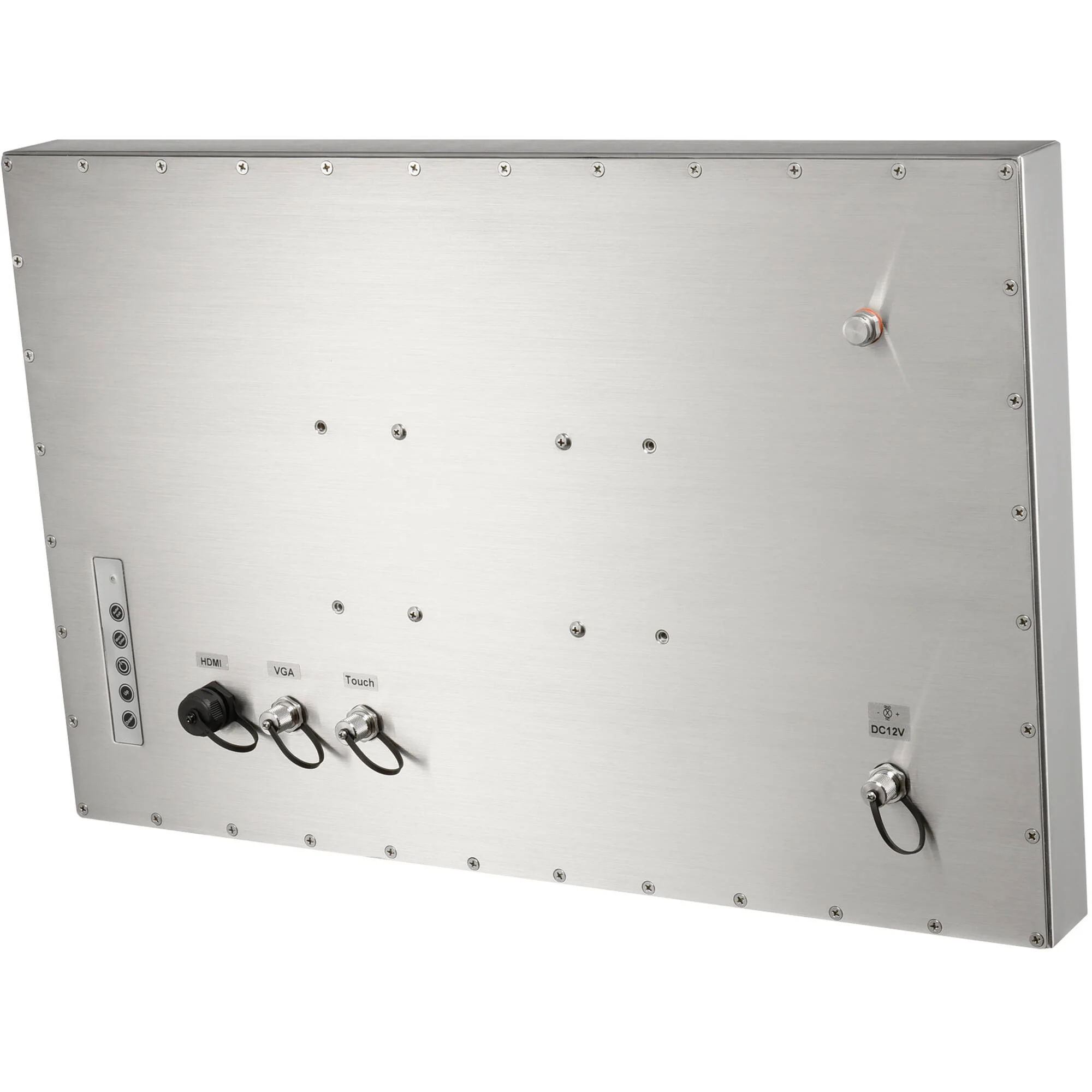

- Heavy-duty IP67 waterproof connectors
- Ruggedized stainless-steel casing
- Scalable resolution up to 1080p
- Extended temperature range
- MTBF (mean time between failures) up to 55,000 hours or up to 6.2 years of continuous operation
- Suitable for use in transportation, system integration, POS, data monitoring, marine, food processing, beverage production, pharmaceutical manufacturing, chemical factory, and broadcast & production installations
In the Box
- Xenarc 2409CNH 24" Class Full HD Touchscreen IPS LED Display
- Waterproof HDMI Cable with IP67 Connector (16.4')
- VGA Cable with IP67 M12 SUS316 Stainless Steel Connector (16.4')
- Waterproof USB Cable with IP67 M12 SUS316 Stainless Steel Connector (16.4')
- Power Cable with IP67 M12 SUS316 Stainless Steel Connector (16.4')
- Limited 3-Year Warranty
Xenarc 24-CNH Specs
Display
| Screen Size (Diagonal) | 24" |
| Resolution | 1920 x 1080 |
| Panel Type | IPS-Type LCD |
| Brightness | 1000 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 5000:1 |
| Response Time | 25 ms |
| Backlighting Technology | LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 1 x M12 (Unspecified) � Audio, Video (Rear) 1 x M12 (Unspecified) � Video (Rear) |
| Output Ports | None |
| USB Ports | 1 x USB (Version Unspecified) - Touchscreen Control |
| Ethernet Ports | None |
General
| TV Tuner | No |
| HDCP Support | Yes |
| Ambient Light Sensor | Yes |
Surface
| Touchscreen Technology | Projected Capacitive |
Electrical
| Power Consumption | Operational: < 45.0 W |
| DC Input Power | 12 VDC |
Environmental
| Operating Temperature | -22 to 158°F / -30 to 70°C |
| Storage Temperature | -22 to 167°F / -30 to 75°C |
| Operating Shock | 10 G / 11.00 ms |
| Operating Vibration | 1 G / 5 to 500 Hz |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
Physical
| Wall Mounting | 100 x 100 mm 200 x 100 mm |
| IP Rating | IP69K |
| Dimensions | 23.9 x 15.4 x 2.1" / 608.0 x 392.0 x 54.0 mm |
| Weight | 22.65 lb / 10.27 kg |
Xenarc 24-CNH Reviews
