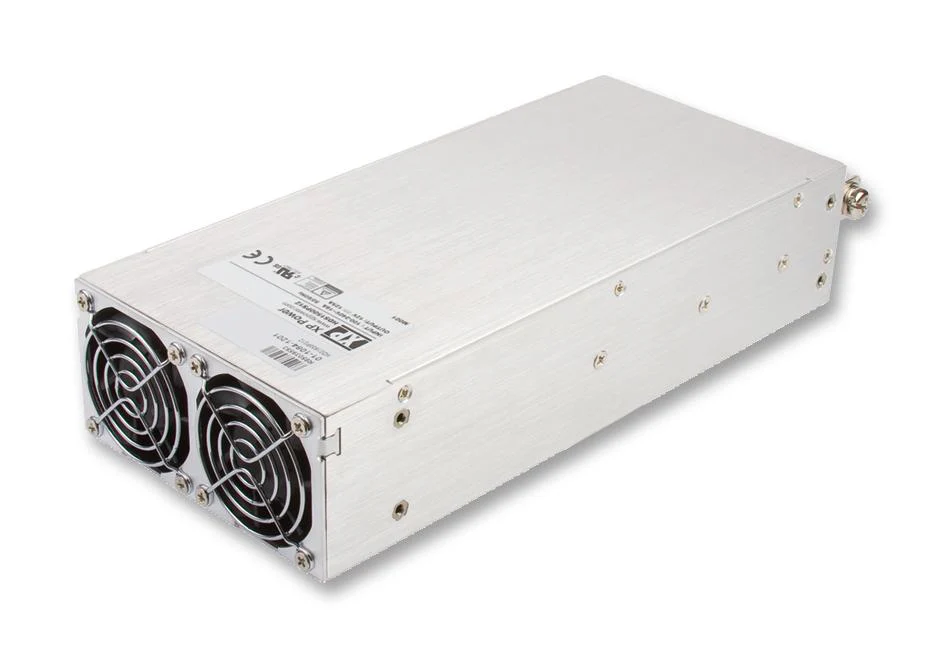

XP Power HDS1500PS60 AC/DC Enclosed Supply (PSU) ITE 1 Outputs 1.5 kW 60 V 25 A
The HDS1500 series offers users both output voltage and output current programming (0 - 105%) via resistance, voltage or I2C bus in a very high efficiency, high power density 3kW chassis mount package. Measuring just 12.32" x 2.5" x 5", the HDS1500 also features active current sharing, remote on/off, remote sense and a power OK signal. The standby output is available whenever the mains supply is present and can be user selected as either 5V at 0.5A or 9V at 0.3A.
- High Efficiency, up to 92%
- High Power Density
- Programmable Output Voltage (0-105%)
- Programmable Output Current (0-105%)
- Parallel Operation
- Fully Featured Signals & Controls
- See Technical Note for information about XP Power's plans for the UKCA Marking
Power Management
Other details
| Brand | XP POWER |
| Part Number | HDS1500PS60 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| Certificate of Conformity EN | |
| CAD Multiple Formats EN | |
| Technical Notes & Articles EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
