Obsidian DMX10-53 Rackmount 10-Port DMX Splitter (5- and 3-Pin)

Obsidian DMX10-53 Rackmount 10-Port DMX Splitter (5- and 3-Pin)

Obsidian DMX10-53 Overview

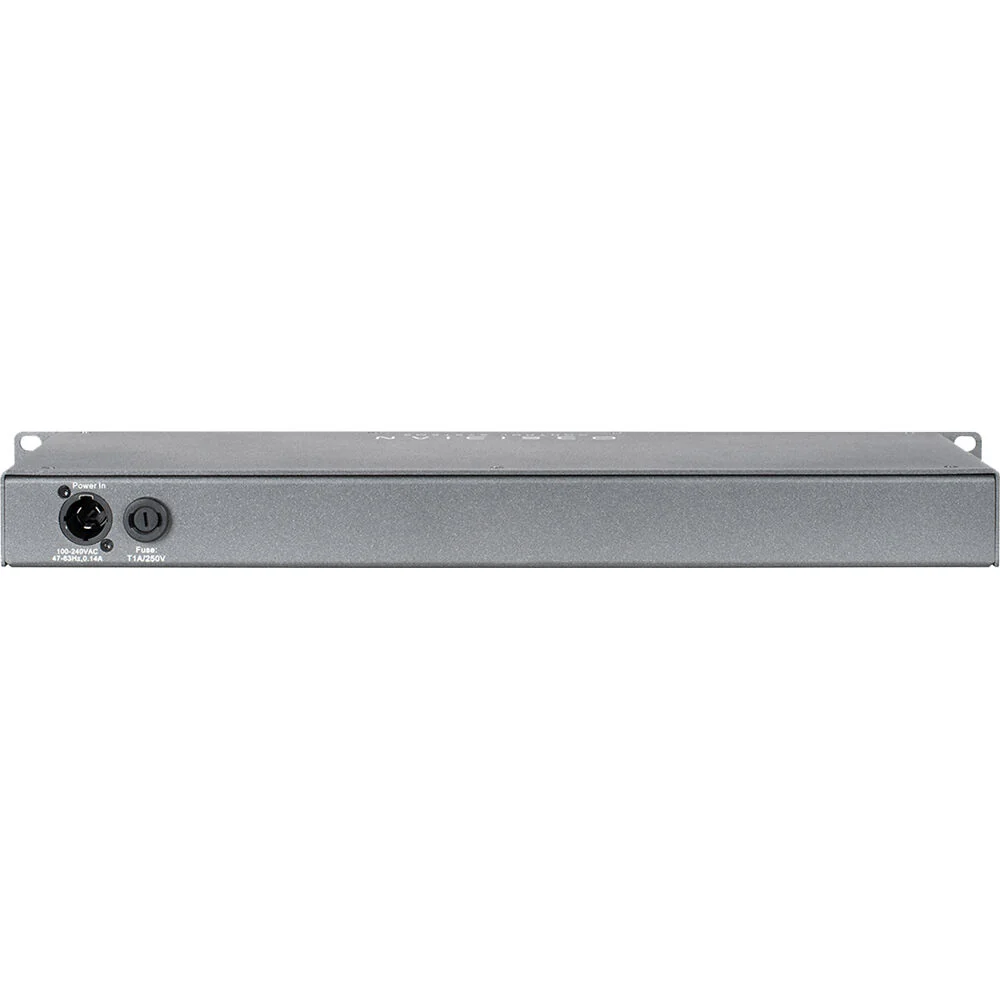

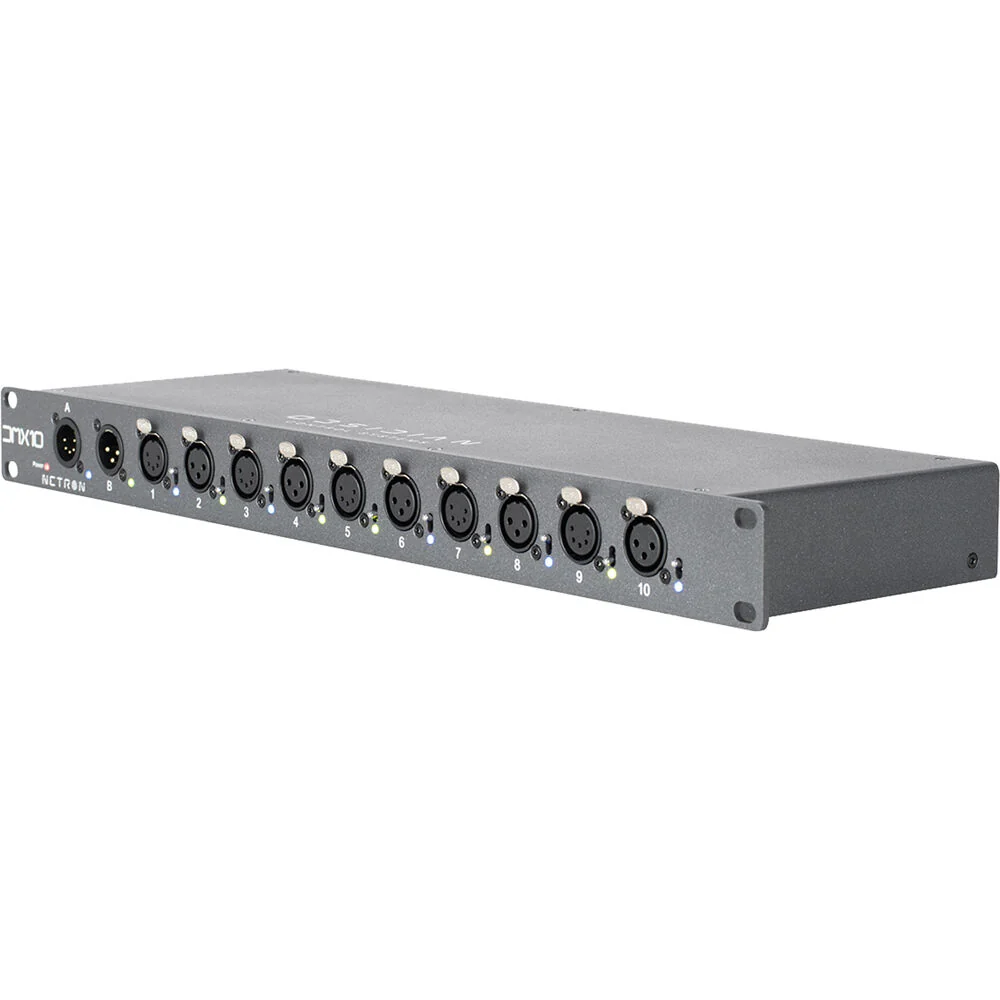

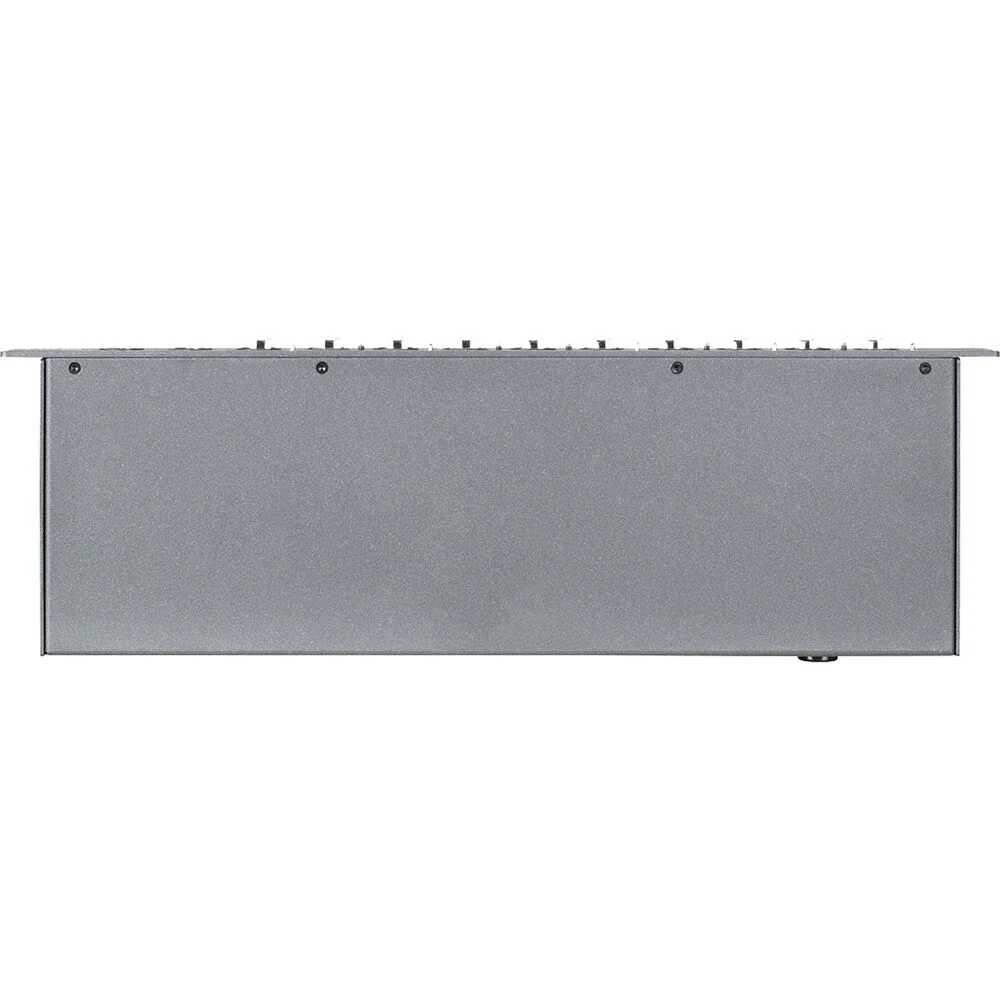

A multi-port DMX device designed with flexibility in mind, the DMX10-53 Rackmount 10-Port DMX Splitter from Obsidian is a compact and reliable DMX unit that offers the versatility of freely assignable 5- and 3-pin DMX outputs. The DMX10-53 receives and boosts incoming DMX signals through two inputs and splits them into 10 opto-isolated outputs. Utilizing its toggling switches, every port is routed to either the A or B input, giving you the flexibility to accommodate any situation. The DMX10-53 conveniently features LED indicators for DMX routing feedback.

Benefits
  • Dual A/B 5- and 3-pin XLR DMX inputs
  • Five 5-pin opto-isolated DMX outputs
  • Five 3-pin opto-isolated DMX outputs
  • A/B routing per output port
  • LED feedback for in/out/A/B/power
  • Lightweight and rugged rackmount housing
Robust Construction
The device's rugged metal chassis features an industrial-strength powder-coated finish that makes it impact-resistant, yet lightweight, and highly durable.
Application
The DMX10-53 is ideal for installations and touring applications that won't require RDM communication, and it is also available in a 5-pin XLR configuration.
UPC: 810008263914

In the Box

  • Obsidian DMX10-53 Rackmount 10-Port DMX Splitter (5- and 3-Pin)
  • Locking Power Cable (5')
  • Limited 2-Year Manufacturer Warranty

Additional Resources

    Obsidian DMX10-53Specs

    Key Specs
    Inputs/Outputs
    1x 5-Pin (DMX) Female Input
    1x 3-Pin (DMX) Female Input
    5x 5-Pin (DMX) Female Output
    5x 3-Pin (DMX) Female Output
    1x (Power) Input
    Wireless
    Yes
    Power Source
    AC Power
    General
    Inputs/Outputs
    1x 5-Pin (DMX) Female Input
    1x 3-Pin (DMX) Female Input
    5x 5-Pin (DMX) Female Output
    5x 3-Pin (DMX) Female Output
    1x (Power) Input
    Wireless
    Yes
    Power
    Power Source
    AC Power
    Input Power
    100 to 240 VAC, 50 / 60 Hz
    PoE Port Power
    Yes
    Physical
    Certifications
    CE, cETLus, UKCA
    Environmental Resistance
    Dust-Resistant (IP20)
    Material of Construction
    Metal
    Rack Mount
    Yes
    Cable Length
    4.9' / 1.5 m
    Dimensions
    19.0 x 6.1 x 1.7" / 482.0 x 156.0 x 44.0 mm
    Weight
    3.3 lb / 1.5 kg
    Packaging Info
    Package Weight
    4.585 lb
    Box Dimensions (LxWxH)
    20.2 x 9.7 x 3.6"
